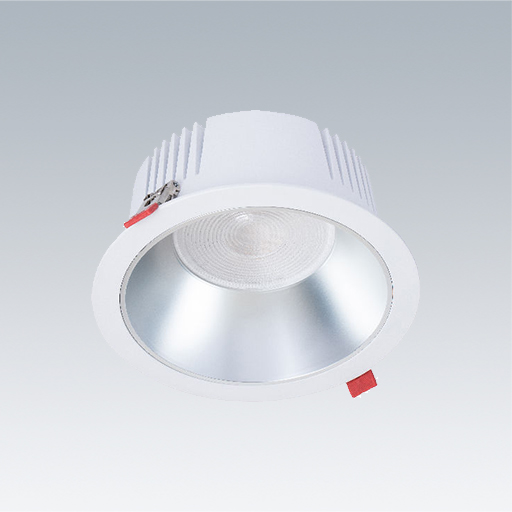

Base Pro
Recessed LED downlight with low height, one for one replacement for traditional compact fluorescent downlights or LED upgrades
- Direct replacement for traditional 1x26W or 2x26W compact fluorescent downlights with various cutout sizes
- Offer features such as CRI 90 and DALI dimmable
- With a maximum 100mm overall height to allow installation into low and restricted ceilings
- Sealed to IP44 as standard, suitable for refurbishments and office buildings as the perfect product to help achieve UGR <19
- Tool free spring clip installation, directly out of the box, suitable for 1-40mm ceiling thicknesses
Materials and Finish
Housing/body: aluminium, powder coated white
Reflector: Matte silver finish
Installation and Mounting
Base Pro can be installed tool free, directly out of the box into a wide range of ceiling types and depths from 1-40mm thickness. The overall height of 60 - 100mm allows installation into low and restricted ceiling voids. Remote driver makes installation and maintenance quick and easy.
Specification
To specify state:
Base Pro downlight incorporating thermally optimised, deep drawn, aluminium body with IP44 as standard.
As Thorn Base Pro
New Product
LumExpress Product
eControl Product
▼ Base Pro
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| BASE PRO 100 LED 1000-940 HFI WH FP | LED | 0.70 | 96650612 | ||||||
| BASE PRO 100 LED 1500-940 HFI WH FP | LED | 0.70 | 96650614 | ||||||
| BASE PRO 150 LED 2000-940 HFI WH FP | LED | 0.90 | 96650616 | ||||||
| BASE PRO 150 LED 2500-940 HFI WH FP | LED | 0.90 | 96650618 | ||||||
| BASE PRO 200 LED 2000-940 HFI WH FP | LED | 1.40 | 96650620 | ||||||
| BASE PRO 200 LED 3000-940 HFI WH FP | LED | 1.40 | 96650622 |
▼ Base Pro accessories
| Description | Wt (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| BASE PRO CEILING ROSE ASI 2M WH | 0.30 | 96651444 | |||||||
| BASE PRO ENCLOSURE SURFACE MOUNTG 100 BK | 1.00 | 96651430 | |||||||
| BASE PRO ENCLOSURE SURFACE MOUNTG 100 WH | 1.00 | 96651429 | |||||||
| BASE PRO ENCLOSURE SURFACE MOUNTG 150 BK | 1.50 | 96651449 | |||||||
| BASE PRO ENCLOSURE SURFACE MOUNTG 150 WH | 1.50 | 96651448 | |||||||
| BASE PRO ENCLOSURE SURFACE MOUNTG 200 BK | 2.00 | 96651681 | |||||||
| BASE PRO ENCLOSURE SURFACE MOUNTG 200 WH | 2.00 | 96651680 | |||||||
| CABLE 5G0,75XL2000/PL1500 CL | 0.30 | 22157679 | |||||||
| CW 5G 0.75 5CORE FLEX Ø6.3x2200mm BLACK | 0.30 | 96651606 |
