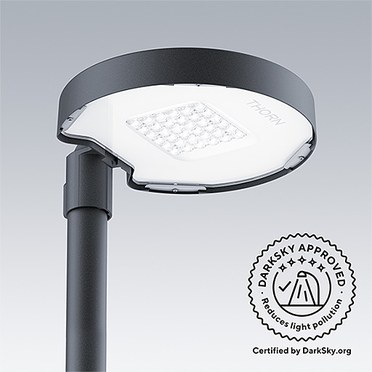

Carat

  • Carat

Elegant urban lantern with durable performance

  • Future proof with Zhaga interface Up, Down, Up and Down, Nighttune and variable light technologies
  • Mostly recyclable and environmental respectful with its ULOR of 0%, R-PEC optics with warm colour temperatures (2200 K / 2400 K /2700 K / 3000 K), internal louvre
  • Durable with high quality materials made of C5 corrosion class die-cast aluminium as standard
  • Flexibility of use : 2 size, top, lateral or suspended mountings, tiltings, dimming and new smart lighting functions to suit any urban application
  • Light weight for ease of use, maintainable

Materials and Finish

Housing, spigot: die-cast aluminium EN AC 44300, powder coated texturized anthracite grey. Via the configurator: Spigot not painted (ANT-S), Texturized black (BK), Texturized light grey (GY) and 48 other RAL possibilities
Glass: Toughened glass, 4 or 5 mm thickness
Fixings: stainless steel, with anti-galvanic treatment

Installation and Mounting

• Available in 2 sizes and can be installed at various heights.
• Choice of mountings : post-top, lateral, suspended
• Universal spigot for lateral and post top installation with adjustable angles (lateral (-20°/0°) and post top (0°/+15°), 5° steps.
• Choice of diameters to suit multiple masts and brackets (Ø 60mm and Ø 76mm post-top mounting, Ø 42mm and Ø 60mm lateral mounting, 34G male for suspended mounting, 2 versions MSU and MSUL).
• Light weight for ease of manipulation
• Pre-wired depending on version - (Any configuration, available in MyProduct Configurator).
• Recommended height for the small luminaire is 3 to 6m,
• Recommended height for the large luminaire is 6 to 10m.
• Additional features available for comfort and wellbeing in urban and residential streets and roads, parkings, transportation, city centres, pedestrian and cycle paths, parks and promenades

Specification

To specify state:
IP66, 2 size, corrosion resistant Class 5 decorative lantern with great versatility. With up to 12000 Llm (Small size) and 20 000 Llm (Large size), efficiency up to 165 Llm/W. IK possibilities : IK08 and IK10 (option). Electrical class 1 and class 2. Offering 4 mounting variants : post top, lateral, suspended, wall mounted. Wide optical offer with efficient Street R-PEC optical system, 26 R-PEC light distributions (symmetrical and asymmetrical). 2200 K / 2400 K /2700 K / 3000 K /4000 K colour temperatures, as standard. Internal back light control louvre, as standard.10Kv surge protection multi pulse and 20Kv single pulse, as standard. Post top reversible spigot pre-assembled for diameter 60mm or 76mm post top mounting and diameter 60mm or 42 mm lateral mounting. Delivered by default in post top mounting. Tilting possibilities for lateral (-20°/0°) and for post top (0°/+15°). 2 suspended versions through 34G, with short (MSU) and long (MSUL) threaded tube. A large choice of colour painting as standard : Texturized anthracite (ANT) by default - Texturized black (BK), Texturized light grey (GY), 48 other RAL possibilities and Spigot not painted (ANT-S). Not pre-wired or pre-wired (through configurator) with lengths of cable from 3 to 12m.
DALI dimmable(HFX) / Bi-Power (BP) / Constant Light Output (CLO)/Bi-power Line (BPL)/Light Reduction Twin Phases (LRT)/ Zhaga interface Up, Down, Up and Down (ZU, ZD, ZUD) / N7 Integral Nema socket - 7 pin / PM Integral mini photocell / Multi-Layers Dimming Scenario 1 (MLD1 with NightTune), NightTune (722-40) and Variable light solution.
Can be combined with decorative brackets and columns.
As Thorn Carat

  • New Product
New Product
LumExpress Product
eControl Product

Carat Small, Narrow road optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
CT S 12L105-730 NR CL1 T76F ANT414957LED6.7096635145
CT S 12L105-730 NR CL2 T60F ANT414957LED6.6096634284
CT S 12L25-730 NR CL1 T76F ANT111398LED6.7096635141
CT S 12L25-730 NR CL2 T60F ANT111398LED6.5096634280
CT S 12L35-730 NR CL1 T76F ANT141897LED6.7096635142
CT S 12L35-730 NR CL2 T60F ANT141897LED6.5096634281
CT S 12L50-730 NR CL1 T76F ANT202617LED6.7096635143
CT S 12L50-730 NR CL2 T60F ANT202617LED6.6096634282
CT S 12L70-730 NR CL1 T76F ANT273523LED6.7096635144
CT S 12L70-730 NR CL2 T60F ANT273523LED6.6096634283
CT S 24L105-730 NR CL1 T76F ANT799817LED7.1096635150
CT S 24L105-730 NR CL2 T60F ANT799817LED7.0096634289
CT S 24L25-730 NR CL1 T76F ANT202793LED6.8096635146
CT S 24L25-730 NR CL2 T60F ANT202793LED6.6096634285
CT S 24L35-730 NR CL1 T76F ANT263789LED6.8096635147
CT S 24L35-730 NR CL2 T60F ANT263789LED6.6096634286
CT S 24L50-730 NR CL1 T76F ANT375220LED6.8096635148
CT S 24L50-730 NR CL2 T60F ANT375220LED6.6096634287
CT S 24L70-730 NR CL1 T76F ANT527010LED6.8096635149
CT S 24L70-730 NR CL2 T60F ANT527010LED6.7096634288
CT S 36L25-730 NR CL1 T76F ANT294177LED6.9096635151
CT S 36L25-730 NR CL2 T60F ANT294177LED6.7096634290
CT S 36L35-730 NR CL1 T76F ANT395657LED6.9096635152
CT S 36L35-730 NR CL2 T60F ANT395657LED6.7096634291
CT S 36L50-730 NR CL1 T76F ANT557765LED6.9096635153
CT S 36L50-730 NR CL2 T60F ANT557765LED6.7096634292
CT S 36L70-730 NR CL1 T76F ANT7610377LED7.2096635154
CT S 36L70-730 NR CL2 T60F ANT7610377LED7.0096634293
CT S 36L80-730 NR CL1 T76F ANT8711539LED7.4096635155
CT S 36L80-730 NR CL2 T60F ANT8711539LED7.2096634294

Carat Large, Narrow road optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
CT L 36L105-730 NR CL1 T76F ANT11714654LED9.5096635160
CT L 36L105-730 NR CL2 T60F ANT11714654LED9.3096634300
CT L 36L25-730 NR CL1 T76F ANT294187LED8.9096635156
CT L 36L25-730 NR CL2 T60F ANT294187LED8.8096634295
CT L 36L35-730 NR CL1 T76F ANT395676LED8.9096635157
CT L 36L35-730 NR CL2 T60F ANT395676LED8.8096634296
CT L 36L50-722-40 VM CL2 WS3 T60F ANT558551LED9.4096634975
CT L 36L50-730 NR CL1 T76F ANT557818LED8.9096635158
CT L 36L50-730 NR CL2 T60F ANT557818LED8.8096634297
CT L 36L70-730 NR CL1 T76F ANT7610496LED9.2096635159
CT L 36L70-730 NR CL2 T60F ANT7610496LED9.1096634298
CT L 48L25-730 NR CL1 T76F ANT365580LED9.3096635161
CT L 48L25-730 NR CL2 T60F ANT365580LED9.1096634301
CT L 48L35-730 NR CL1 T76F ANT507558LED9.3096635162
CT L 48L35-730 NR CL2 T60F ANT507558LED9.1096634302
CT L 48L50-730 NR CL1 T76F ANT7110399LED9.3096635163
CT L 48L50-730 NR CL2 T60F ANT7110399LED9.4096634303
CT L 48L70-722-30 VS CL1 WS3 T60F ANT10115232LED9.4096634982
CT L 48L70-730 NR CL1 T76F ANT10113927LED9.5096635164
CT L 48L70-730 NR CL2 T60F ANT10113927LED9.4096634304
CT L 48L80-730 NR CL1 T76F ANT15619386LED9.7096635165
CT L 48L80-730 NR CL2 T60F ANT15619386LED9.6096634305
CT L 60L25-730 NR CL1 T76F ANT466962LED9.6096635166
CT L 60L25-730 NR CL2 T60F ANT466962LED9.4096634306
CT L 60L35-730 NR CL1 T76F ANT639421LED9.6096635167
CT L 60L35-730 NR CL2 T60F ANT639421LED9.4096634307
CT L 60L50-730 NR CL1 T76F ANT8912930LED9.6096635168
CT L 60L50-730 NR CL2 T60F ANT8912930LED9.4096634308
CT L 60L70-730 NR CL1 T76F ANT12617255LED9.6096635169
CT L 60L70-730 NR CL2 T60F ANT12617255LED9.4096634309
CT L 60L80-730 NR CL1 T76F ANT14519257LED9.8096635170
CT L 60L80-730 NR CL2 T60F ANT14519257LED9.6096634310

Carat L NR

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
CT L 36L35-722-40 VM CL2 SP WS3 T60F ANT395268LED9.4096635004
CT L 60L80-730 NR CL1 SP WS3 T60F ANT14519257LED9.4096635009
