Raze Architectural / RAA L 1L50-830 LV HFX 6K MWA ANT

96631792

Data Sheet

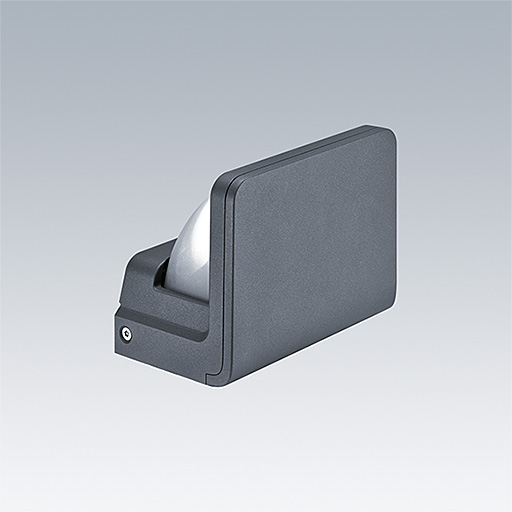

A compact, Wall mounted, LED wall grazer, incorporating Thorn's Flat beam® technology. 1 LED driven at 500mA. Integral DALI dimmable LED driver included. Class II electrical, IP66, IK08. Housing: die-cast aluminium (EN44300, compatible with seaside installation), powder coated, textured anthracite (close to RAL7043). Bowl: UV stablised polycarbonate, semi-frosted. Fasteners: stainless steel. Fitted with internal louvre to reduce lateral glare. Complete with 3000K LED.

S version driver capable of supplying up to three luminaires.
MSF variant with adjustable tilt up to ±15°.
MWA variant flush mounting.
6kV surge protection as standard. Pre-wired.

Dimensions: 172 x 147 x 220 mm
Luminaire input power: 21 W
Luminaire luminous flux: 1433 lm
Luminaire efficacy: 68 lm/W
Weight: 2.77 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:1433 lm
  • Luminaire efficacy*:68 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 87500884 LCO 40/200-1050/64 o4a NF C EXC3
  • Correlated colour temperature*:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated useful life (B10)*:L70 100000 h at 25 °C
  • Luminaire input power*:21 W
  • Dimming:DaliDim
  • LED
  • GLedReP
  • IK10
  • IP66
  • Coastal_C5
  • LLedReP
  • RCM
  • SC2 - Protection Class 2

Photometry

Photometric configuration

CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

Step 1: Technical data
(lm)
(m)
(m)
(%)
Step 2: Room Data
(m)
(m)
(m)
(m)
(%)
Step 3: Result
(lx)
(%)
