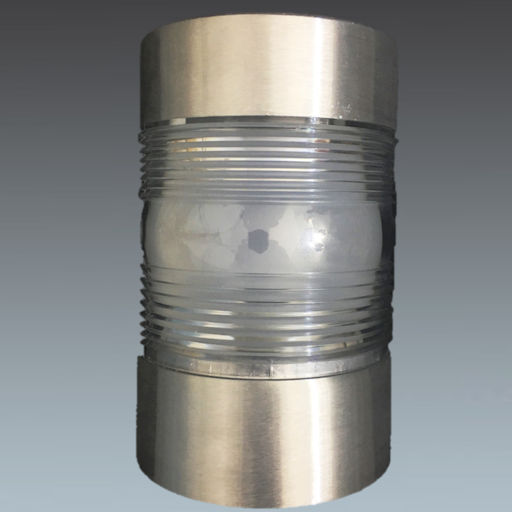

Chartor / CHARTOR HEAD LF LED800-840 LUC AL

96649335

Data Sheet

A timeless bollard offering modest visual guidance and comfortable light with low glare. Head: die-cast aluminium, unpainted (Other colours available upon request). Diffuser: semi-opal anti-UV polycarbonate. Lenses: clear polycarbonate. Class I electrical, IP44, Impact strength: IK09. Low upward component limiting upward stray light for improved visual comfort.

Electronic, fixed output control gear for LED. Complete with 4000K LED

Dimensions: Ø140 x 230 mm
Luminaire input power: 27.5 W
Weight: 2.3 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:721 lm
  • Luminaire efficacy*:26 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 28003555 LCO 75W 200-1400mA flexC 0-10V NF L SNC3
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L90 50000 h at 25 °C
  • Luminaire input power*:27.5 W
  • Dimming:FO
  • LED
  • ASNZS60598
  • IK09
  • IP44
  • RCM
  • SC1 - Protection Class 1
