EyeKon LED

  • EyeKon LED
  • EyeKon LED

Energy efficient, robust and impact resistant LED bulkheads

  • Available in two sizes, four designs and three colour options
  • Lumen packages from 400 to 1550 lumens giving options for wider spacing without leaving dark areas
  • Presence detection that will switch on when sensor is activated, illuminating the area
  • Corridor function that will dim to 10% and switch to 100% when the area is occupied, thus maximising energy savings

Materials and Finish

Housing and decorative feature (bezel, cross, halo and visor): die-cast aluminium (EN AC-44300, standard corrosion class: C3).
Diffuser: opal polycarbonate
Reflector in aluminium for Visor/Halo, sheet steel for Bezel/Cross
Gaskets: extruded silicone rubber sponge

Installation and Mounting

Suitable for wall or ceiling mounting with central BESA provision and four fixing points (2 horizontal holes to aid adjustment, additional holes for security or uneven surfaces). Two cable entries to rear or side (not for conduit use) into 3 way terminal block (2x2.5mm²) (4 way for E3 versions, 6 way for E3TX versions). Looping possible. Separate gear tray secures with two screws. Tamper proof screws, Torx key supplied with every luminaire.

Specification

To specify state:
Surface mounted bulkhead with die-cast black/silver grey/anthracite/white aluminium body and opal polycarbonate diffuser. IP65, IK10 double wall design that will conceal cable from view. Round large/small with bezel/cross/halo-visor/visor. With emergency/presence sensor/energy saving options.
As Thorn Eyekon LED

New Product
LumExpress Product
eControl Product

Eyekon LED Small with bezel, anthracite

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
EYE BE LED1100-830 HF S ANT111050LED2.3096665956
EYE BE LED1100-840 HF S ANT111150LED2.3096665878
EYE BE LED1100-840 MWS S ANT111150LED2.4096665879
EYE BE LED700-830 HF S ANT7660LED2.3096665954
EYE BE LED700-840 HF S ANT7725LED2.3096665862
EYE BE LED700-840 MWS S ANT7725LED2.4096665863

Eyekon LED Small with cross, anthracite

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
EYE CR LED600-830 HF S ANT7565LED2.5096665953
EYE CR LED600-840 HF S ANT7620LED2.5096665858
EYE CR LED600-840 MWS S ANT7620LED2.6096665859
EYE CR LED950-830 HF S ANT11905LED2.5096665955
EYE CR LED950-830 MWS S ANT11905LED2.8092900969
EYE CR LED950-840 HF S ANT11990LED2.5096665874
EYE CR LED950-840 MWS S ANT11990LED2.6096665875

Eyekon LED Small with halo-visor, anthracite

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
EYE HA LED400-830 HF S ANT7400LED2.5096665952
EYE HA LED400-840 HF S ANT7435LED2.5096665850
EYE HA LED400-840 MWS S ANT7435LED2.6096665851
EYE HA LED700-830 HF S ANT11640LED2.5096628454
EYE HA LED700-840 HF S ANT11700LED2.5096665866
EYE HA LED700-840 MWS S ANT11700LED2.6096665867

Eyekon LED Small with visor, anthracite

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
EYE VS LED400-830 HF S ANT7400LED2.5096628455
EYE VS LED400-840 HF S ANT7435LED2.5096665854
EYE VS LED400-840 MWS S ANT7435LED2.6096665855
EYE VS LED700-830 HF S ANT11640LED2.5096628456
EYE VS LED700-840 HF S ANT11700LED2.5096665870
EYE VS LED700-840 MWS S ANT11700LED2.6096665871

Eyekon LED Large with bezel, anthracite

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
EYE BE LED1150-830 HF L ANT111050LED3.3096665958
EYE BE LED1150-840 HF L ANT111165LED3.3096665894
EYE BE LED1150-840 MWS L ANT111165LED3.4096665895
EYE BE LED1550-830 HF L ANT161435LED3.3096665961
EYE BE LED1550-840 HF L ANT161575LED3.3096665910
EYE BE LED1550-840 MWS L ANT161575LED3.4096665911

Eyekon LED Large with cross, anthracite

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
EYE CR LED1000-830 HF L ANT11890LED3.5096665959
EYE CR LED1000-840 HF L ANT11975LED3.5096665890
EYE CR LED1000-840 MWS L ANT11975LED3.6096665891
EYE CR LED1350-830 HF L ANT161210LED3.5096665960
EYE CR LED1350-840 HF L ANT161320LED3.5096665906
EYE CR LED1350-840 MWS L ANT161320LED3.6096665907

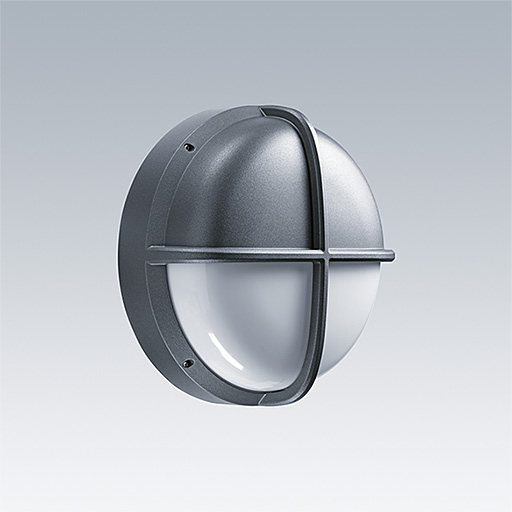

Eyekon LED Large with halo-visor, anthracite

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
EYE HA LED1050-830 HF L ANT16965LED3.5096628457
EYE HA LED1050-840 HF L ANT161050LED3.5096665898
EYE HA LED1050-840 MWS L ANT161050LED3.6096665899
EYE HA LED750-830 HF L ANT11690LED3.5096665957
EYE HA LED750-840 HF L ANT11750LED3.5096665882
EYE HA LED750-840 MWS L ANT11750LED3.6096665883

Eyekon LED Large with visor, anthracite

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
EYE VS LED1000-830 HF L ANT16900LED3.5096628459
EYE VS LED1000-840 HF L ANT16990LED3.5096665902
EYE VS LED1000-840 MWS L ANT16990LED3.6096665903
EYE VS LED750-830 HF L ANT11690LED3.5096628458
EYE VS LED750-840 HF L ANT11750LED3.5096665886
EYE VS LED750-840 MWS L ANT11750LED3.6096665887

Eyekon LED Bollards

Description   Wt (kg)SAP Code
EYE BOLLARD SMALL ANT9.0096207085
