EyeKon LED / EYE BE LED1550-840 MWS L ANT

96665911

Data Sheet

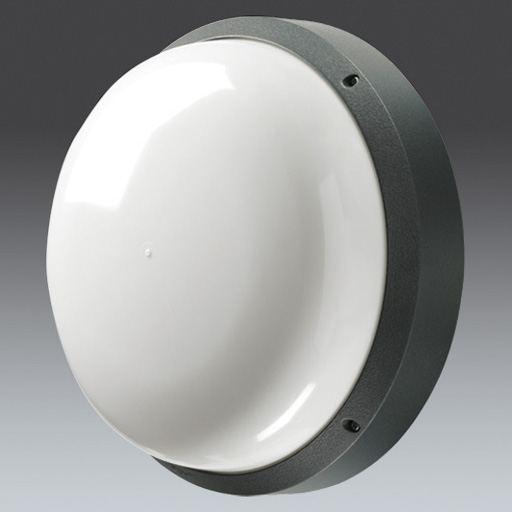

Round, impact resistant LED bulkhead luminaire. Electronic, fixed output control gear. Class I electrical, IP65, IK10. Body: large size, die-cast aluminium (LM6), powder coated anthracite. Diffuser: opal polycarbonate with die-cast aluminium bezel feature. Electrical connection via 3 x 2 x 2.5mm² terminal block. With integral motion sensor for on/off control. Complete with 4000K LED

Dimensions: Ø340 x 155 mm
Total power: 16 W
Weight: 3.4 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:1575 lm
  • Luminaire efficacy*:98 lm/W
  • Lamp efficacy:98 lm/W
  • Colour Rendering Index min.:80
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam)*:3
  • Rated median useful life*:50000h L90 at 25°C
  • Ballast:1x EL2 Tridonic LCI
  • Luminaire input power*:16 W
  • Dimming:FO
  • LED
  • EN 55015
  • 850°
  • IK10
  • IP65
  • RCM
  • SC1 - Protection Class 1
  • Ta=35°C
