Arendal Sports Park, Norway

  • Arendal Sports Park, Norway
  • Arendal Sports Park, Norway
  • Arendal Sports Park, Norway
  • Arendal Sports Park, Norway
  • Lamp efficacy

    Lamp efficacy

    Ensuring the lamp efficiently converts electricity into light (lm/W).

  • Ballast classification

    Ballast classification

    Controlling the electricity supply to the lamp (Energy Efficiency Index).

  • Luminaire distribution

    Luminaire distribution

    Controlling light emission using optics which bend and shape the light to the correct location.

  • System efficacy

    System efficacy

    Combining optical and thermal control within the luminaire (luminaire lm/W).

  • Presence/absence detection

    Presence/absence detection

    Presence: Lights automatically turn on/off with movement. Absence: Lights automatically turn off and must be manually switched on.

  • Daylight detection

    Daylight detection

    Artificial lighting which responds to the natural light conditions.

  • Constant illuminance

    Constant illuminance

    A function designed to produce correct light levels for the duration of the maintenance period.

  • Task-scene setting

    Task-scene setting

    Allowing the user to set scenes and adapt the lighting to different tasks.

  • Timed off

    Timed off

    Automatic cut-off can be installed to turn all lights off during unoccupied hours.

  • Task lighting

    Task lighting

    Lighting task areas with the correct amount of light.

  • Zoning of lighting

    Zoning of lighting

    Lighting is zoned according to area use.

  • Maintenance schedule

    Maintenance schedule

    Maintenance must be performed in response to product age, performance and environment.

  • Waste light

    Waste light

    Eliminating waste light which does not hit the intended target.

  • Reflectance

    Reflectance

    Taking advantage of light which is reflected from the surface within the space.

  • Visible smart metering

    Visible smart metering

    Results of actions can be quickly seen as increased or decreased energy use to encourage responsible energy consumption.

Clan C LED chosen for the outdoor lighting at Arendal Sports Park

Sør Amfi Arendal in Norway was completed in August 2012. The facilities, which are a joint project shared by the city of Arendal, Aust-Agder and the sports community, consist of an indoor tennis hall, sports hall and gymnasium, plus an administration building, VIP rooms and fitness centre. Outside, facilities include tennis and volleyball courts, as well as parking areas and landscaped features.

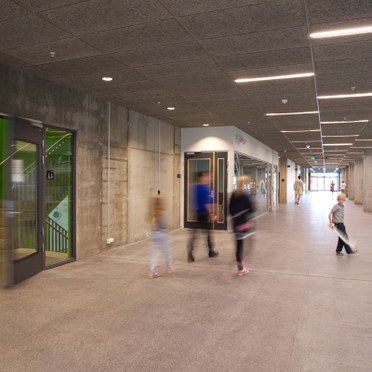

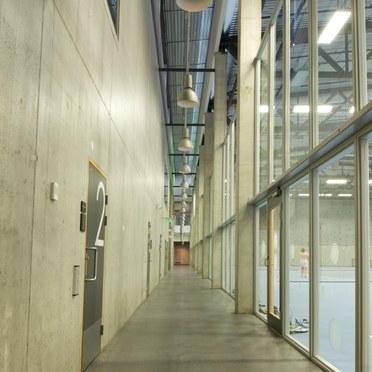

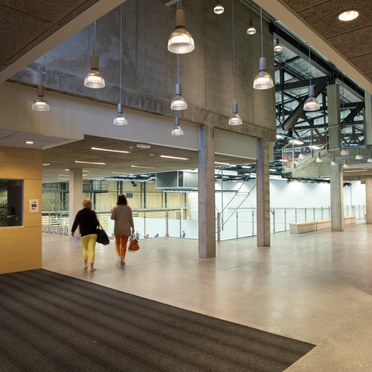

In cooperation with electrical contractors Agder El.Installasjon AS, Thorn supplied the outdoor and indoor lighting, primarily for the common areas where people gather and move around. The contractor and architect's design consultant played a leading role in the choice of luminaires.

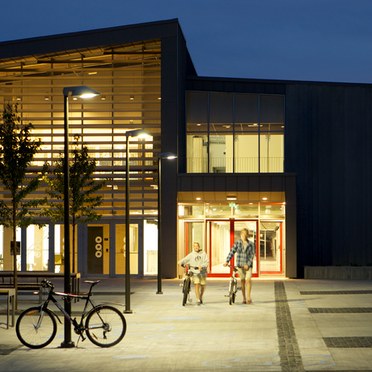

Of the seven luminaires selected, Clan C LED is used in the car park and walkways to the building, as well as the volleyball, skate and tennis courts. Chosen for its subtle, modern properties, Clan C LED offers a wide and consistent design theme covering three bracket collections, two optics and 15 lamps. Clan C LED additionally provides street or asymmetrical lighting distributions and includes dimming and control options to optimise energy consumption.

The state-of-the-art LED versions chosen for Sør Amfi Arendal(39W, 58W) comply with EN13201 and have an expected lifetime of 50,000 hours (@L80, Ta 25°C). Integrated dimming further reduces energy consumption by up to 50 per cent in comparison to aged installations, with no compromise on lighting levels or the quality of light.

Clan C LED delivers light where it is needed without spill and by using fewer lanterns. The precision optical design around individual LEDs gives better spacing and uniformity compared to more conventional light sources.

The installation at Sør Amfi Arendal additionally features the Identification Visibility Safety (IVS) system to enhance pedestrian safety with a dedicated double asymmetric optic. The use of additional signaling makes it easy for drivers to see pedestrians on the pavement and kerb from a distance, while pedestrians are able to clearly view the pavement surface, obstructions and other pedestrians. The IVS system is mounted at the same height (between 4 and 7m) and uses the same consistent body design throughout the scheme for total unification.

Paal Dokkedal, Agder El. Installasjon AS says: "We are very satisfied with all the outdoor and indoor luminaires provided by Thorn Lighting. They complement the modern environment we have created here while minimising energy consumption and providing quality light at Sør Amfi Arendal."

Facts

  • The following luminaires were selected: Base LED, Cruz LED, Glacier II LED, EquaLine LED, D-CO LED, Clan LED and
  • Band 2
  • For indoor lighting control, simple stand-alone solutions from Thorn are among the systems used, which means the individual areas can be controlled independently to each other. They include SwitchLite, SensaDigital and SensaDAY.
  • The lighting has been delivered in cooperation with electrical contractor AgderEl.installasjon.
