Recuvo N / RECUVO N 822 HFI

96652624

▼ Data Sheet

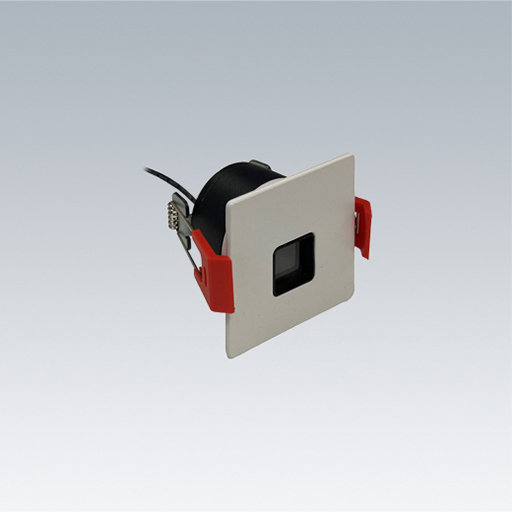

Recessed wall-mounted luminaire with subtle, cut-off light emission. Remote Dali-2 driver included. IP44 room side/ IP20 back side.. IP44_IP20 Impact strength: IK06. Die-cast aluminium powder coated white frame and tempered glass. Complete with 2200K LED, asymmetric light distribution and matt black reflector for biologically unobtrusive night light. Suitable as night light in hospital patient-room and wards as well as orientation light on staircases and corridors.

Dimensions: 56 x 56 x 49 mm
Luminaire input power: 3.4 W
Luminaire luminous flux: 22 lm
Luminaire efficacy: 6 lm/W
Weight: 0.25 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:22 lm
  • Luminaire efficacy*:6 lm/W
  • Colour Rendering Index min.:80
  • Correlated colour temperature*:2200 Kelvin
  • Chromaticity tolerance (initial MacAdam):5
  • Rated median useful life*:L80 50000 h at 25 °C
  • Ballast:1x LED_DRV
  • Luminaire input power*:3.4 W Power factor = 0.9
  • Dimming:Dali2Dim
  • LED
  • IK06
  • IP44_IP20
  • RCM
  • SC2 - Protection Class 2
  • Ta = -20 to +45

▼ Photometry

Photometric configuration
