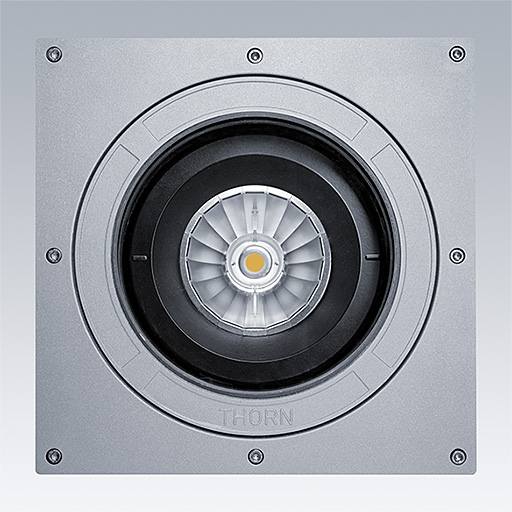

Axyl Opera, drive over / AXYL OPERA XL DO 1L 927 MB HFX GY

96700978

▼ Data Sheet

Axyl Opera, drive over, a floor recessed, LED luminaire for decorative facade lighting, with medium beam distribution. Class I electrical.. DALI-2 dimmable LED driver. IP67, Impact strength: IK09. Housing: die-cast aluminium, powder coated textured grey (RAL9006). Working ambient temperature: -20°C to +40°C. Complete with 2700K LED..

Dimensions: 280 x 280 x 245 mm
Luminaire input power: 40.6 W
Luminaire luminous flux: 2547 lm
Luminaire efficacy: 63 lm/W
Weight: 9.56 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:2547 lm
  • Luminaire efficacy*:63 lm/W
  • Colour Rendering Index min.:90
  • Correlated colour temperature*:2700 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated useful life (B10)*:L80 70000 h at 25 °C
  • Ballast:1x LED_DRV
  • Luminaire input power*:40.6 W Power factor = 0.99
  • Dimming:Dali2Dim
  • Maintenance category CIE 97:E - Dust-proof IP5X
  • LED
  • IK09
  • IP67
  • SC1 - Protection Class 1
