  • Axyl Opera — AXYL OPERA L WO 3L RGBW WB PWM SS

Axyl Opera / AXYL OPERA L WO 3L RGBW WB PWM SS

96701171

▼ Data Sheet

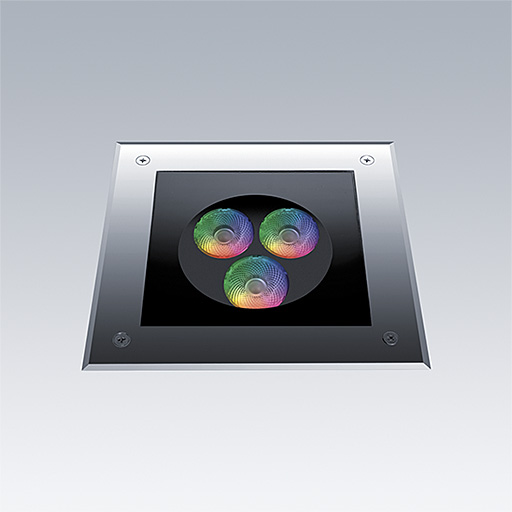

Axyl Opera, RGBW versions, a floor recessed, architectural LED luminaire for decorative facade lighting, with wide beam distribution. Class III electrical.. fixed output control gear LED driver. , IP67, Impact strength: IK09. Housing: die-cast aluminium, unpainted textured. Working ambient temperature: -20°C to +40°C...

Dimensions: 200 x 200 x 135 mm
Luminaire input power: 15 W
Luminaire luminous flux: 467 lm
Luminaire efficacy: 31 lm/W
Weight: 3.99 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:467 lm
  • Luminaire efficacy*:31 lm/W
  • Colour Rendering Index min.:-1
  • Chromaticity tolerance (initial MacAdam):3
  • Rated useful life (B10)*:L80 70000 h at 25 °C
  • Ballast:1x LED_DRV
  • Luminaire input power*:15 W
  • Dimming:Fixed output
  • LED
  • IK09
  • IP67
  • SC3 - Protection Class 3

▼ Photometry

Photometric configuration
