  • Cesar Opera, drive over — CESAR OPERA XL DO 1L 930 MB HFX SS

Cesar Opera, drive over / CESAR OPERA XL DO 1L 930 MB HFX SS

96700975

▼ Data Sheet

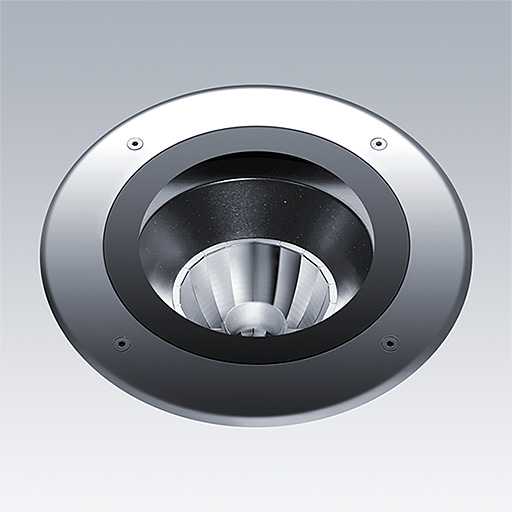

Cesar Opera, drive over extra-large a floor recessed, architectural LED luminaire for decorative facade lighting, medium beam distribution. DALI-2 dimmable LED driver. Class I electrical, IP67, Impact strength: IK10. Housing: Die-cast aluminium, unpainted. Working ambient temperature: -20°C to +45°C. Complete with 3000K LED.

Dimensions: Ø375 x 200 mm
Luminaire input power: 33.2 W
Luminaire luminous flux: 2599 lm
Luminaire efficacy: 78 lm/W
Weight: 9.91 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:2599 lm
  • Luminaire efficacy*:78 lm/W
  • Colour Rendering Index min.:90
  • Correlated colour temperature*:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated useful life (B10)*:L80 70000 h at 25 °C
  • Ballast:1x LED_DRV
  • Luminaire input power*:33.2 W
  • Dimming:Dali2Dim
  • LED
  • IK10
  • IP67
  • SC1 - Protection Class 1
