Caelon S / CAELON S7I 700-830 M BK 66 HF

21035854

▼ Data Sheet

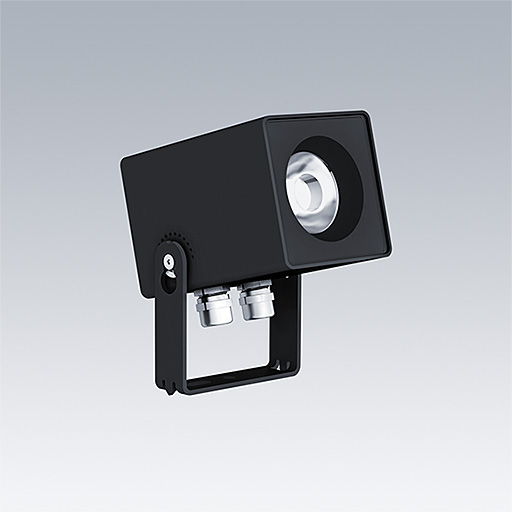

Caelon S adjustable surface mounted spotlights for the illumination of architectural facades, feature details, niches and structures. Class I electrical, IP66 with. Equipped with Fixed output driver. Body: die-cast aluminium in black. Stainless steel screws. ambient temperature: -20°C to +25°C. Complete with 3000K LED.

Dimensions: 75 x 75 x 111 mm
Luminaire input power: 11.1 W
Luminaire luminous flux: 840 lm
Luminaire efficacy: 76 lm/W
Weight: 0.95 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:840 lm
  • Luminaire efficacy*:76 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 96375800 DRV HP G5S 10W 700mA 14.5V F
  • Correlated colour temperature*:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam):2
  • Rated median useful life*:L70 50000 h at 30 °C
  • Luminaire input power*:11.1 W
  • Dimming:FIX
  • LED
  • IK06
  • IP66
  • SC1 - Protection Class 1

▼ Photometry

Photometric configuration
