  • Axyl Opera — AXYL OPERA L WO 1L 940 5D HFX SS

Axyl Opera / AXYL OPERA L WO 1L 940 5D HFX SS

96801541

▼ Data Sheet

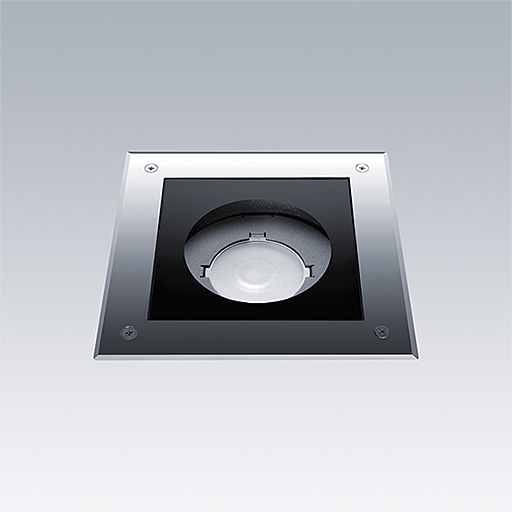

Axyl Opera, a floor recessed, architectural LED luminaire for decorative facade lighting, with 5D Beam (10 to 50° Beam angle dimmable by DALI) distribution. Class III electrical.. DALI-2 dimmable LED driver. IP67, Impact strength: IK09. Housing: die-cast aluminium, powder coated textured. Working ambient temperature: -20°C to +40°C. Complete with 4000K LED..

Dimensions: 210 x 210 x 240 mm
Luminaire input power: 16.4 W
Luminaire luminous flux: 952 lm
Luminaire efficacy: 58 lm/W
Weight: 4.26 kg

Mode selection
    • IK09
    • IP65
    • IP67
    • SC3 - Protection Class 3
