  • Cesar Jazz — CESAR JAZZ 2W U/D 1L 930NWB RD GY

Cesar Jazz / CESAR JAZZ 2W U/D 1L 930NWB RD GY

96701342

▼ Data Sheet

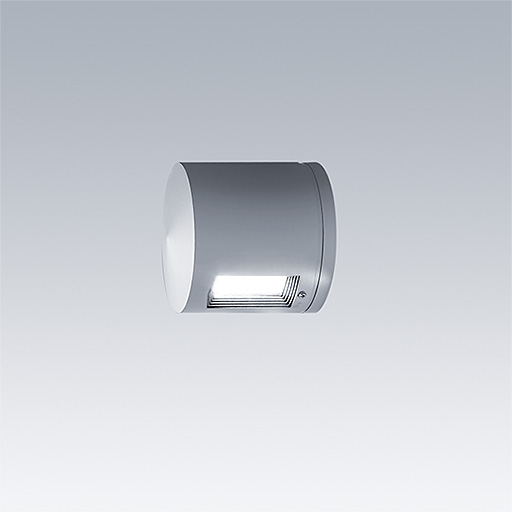

Cesar Jazz a wall mounted, architectural LED luminaire for decorative facade lighting, 2 window, narrow beam up and wide beam down distribution.. Remote DALI2 driver LED driver , ordered separately. Class II electrical IP65, Impact strength: IK10. Housing: die-cast aluminium, powder coated grey. Working ambient temperature: -20°C to +50°C. Complete with 3000K LED.

Operate with 96700028 DALI2 Remote Driver (to be ordered separately).
Driver capable of supplying up to one luminaire(s).
Maximum operating current : 450mA.
Maximum distance of 10m between luminaire(s) and driver.

Dimensions: Ø180 x 180 mm
Luminaire input power: 18.1 W
Luminaire luminous flux: 356 lm
Luminaire efficacy: 20 lm/W
Weight: 3.36 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:356 lm
  • Luminaire efficacy*:20 lm/W
  • Colour Rendering Index min.:90
  • Correlated colour temperature*:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated useful life (B10)*:L80 70000 h at 25 °C
  • Ballast:1x LED_DRV
  • Luminaire input power*:18.1 W
  • Dimming:Dali2Dim
  • LED
  • C-tick
  • IK10
  • IP65
  • RCM
  • SC3 - Protection Class 3
