  • Cesar Stride — CESAR STRIDE M SE 28L 930 HF ANT

Cesar Stride / CESAR STRIDE M SE 28L 930 HF ANT

96700570

▼ Data Sheet

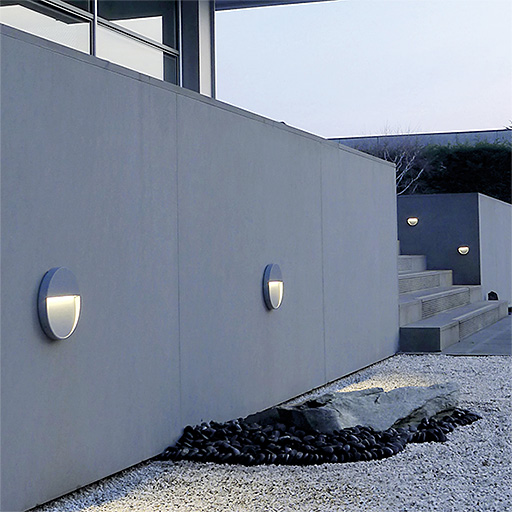

Cesar Stride a wall mounted, architectural LED luminaire for decorative facade lighting, asymmetrical distribution. Fixed output LED driver. Class I electrical, IP65, Impact strength: IK08. Housing: Die-cast aluminium, powder coated anthracite. Working ambient temperature: -20°C to +40°C. Complete with 3000K LED.

Dimensions: Ø220 x 30 mm
Luminaire input power: 10.1 W
Luminaire luminous flux: 374 lm
Luminaire efficacy: 37 lm/W
Weight: 1.25 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:374 lm
  • Luminaire efficacy*:37 lm/W
  • Colour Rendering Index min.:90
  • Correlated colour temperature*:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated useful life (B10)*:L80 70000 h at 25 °C
  • Ballast:1x LED_DRV
  • Luminaire input power*:10.1 W
  • Dimming:FIX
  • LED
  • IK08
  • IP65
  • SC1 - Protection Class 1

▼ Photometry

Photometric configuration
