  • Escort — ESCORT 800-840 HF

Escort / ESCORT 800-840 HF

96636106

▼ Data Sheet

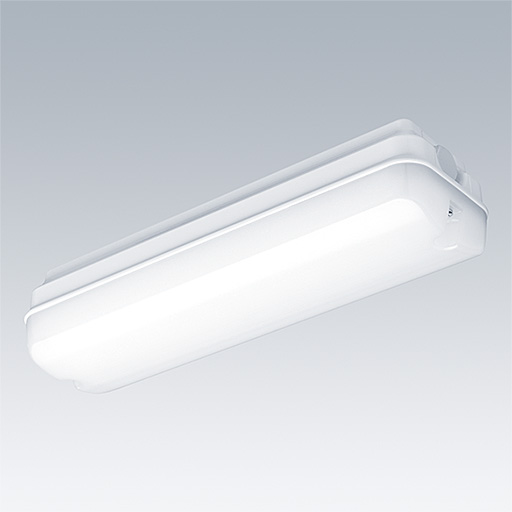

A self-contained, IP65, weatherproof bulkhead luminaire. Electronic, fixed output control gear. Durable, white, stove enamelled die-cast aluminium body and opal polycarbonate diffuser with vandal resistant screw fixings (Type T25 TORX screwdriver required). Suitable for interior and exterior industrial or public amenity usage. Complete with 4000K LED



ambient temperature: 0°C to +25°C

Dimensions: 352 x 102 x 79 mm
Luminaire input power: 7.3 W
Luminaire luminous flux: 800 lm
Luminaire efficacy: 110 lm/W
Weight: 1 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:800 lm
  • Luminaire efficacy*:110 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 28000704 LC 10W 150-400mA flexC SC EXC
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L75 100000 h at 25 °C
  • Luminaire input power*:7.3 W Power factor = 0.77
  • Dimming:FO
  • LED
  • GLedNr
  • 850°
  • IK10
  • IP65
  • LLedNr
  • RCM
  • SC1 - Protection Class 1
  • Ta=25

▼ Photometry

Photometric configuration
