Les Andelys, France

  • Les Andelys, France
  • Les Andelys, France
  • Les Andelys, France
  • Lamp efficacy

    Lamp efficacy

    By switching from mercury MBF 125 lanterns to five EP 145 LED, power use has been reduced, while the state-of-the-art LED system has increased light output.

  • Ballast classification

    Ballast classification

    Controlling the electricity supply to the lamp (Energy Efficiency Index).

  • Luminaire distribution

    Luminaire distribution

    Controlling light emission using optics which bend and shape the light to the correct location.

  • System efficacy

    System efficacy

    Optical and thermal control within the luminaire are essential as even two lanterns containing the same LED module can have widely differing light output ratios (LOR), lifetimes and colour performance. EP 145 LEDs design achieves a strong LOR and therefore minimises light loss.

  • Presence/absence detection

    Presence/absence detection

    Presence: Lights automatically turn on/off with movement. Absence: Lights automatically turn off and must be manually switched on.

  • Daylight detection

    Daylight detection

    Artificial lighting which responds to the natural light conditions.

  • Constant illuminance

    Constant illuminance

    A function designed to produce correct light levels for the duration of the maintenance period.

  • Task-scene setting

    Task-scene setting

    Bi-power dimming allows light levels to be reduced during the quietest hours of the night. Automatically reducing light output and energy use by 50% for 8 hours per night results in significant energy savings with minimal impact on pedestrians and users.

  • Timed off

    Timed off

    Automatic cut-off can be installed to turn all lights off during unoccupied hours.

  • Task lighting

    Task lighting

    Lighting task areas with the correct amount of light.

  • Zoning of lighting

    Zoning of lighting

    Lighting is zoned according to area use.

  • Maintenance schedule

    Maintenance schedule

    Maintenance must be performed in response to product age, performance and environment.

  • Waste light

    Waste light

    Eliminating waste light which does not hit the intended target.

  • Reflectance

    Reflectance

    Taking advantage of light which is reflected from the surface within the space.

  • Visible smart metering

    Visible smart metering

    Results of actions can be quickly seen as increased or decreased energy use to encourage responsible energy consumption.

New EP 145 LED transforms light and slashes energy consumption in historic French street

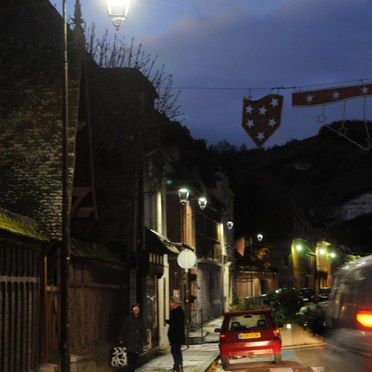

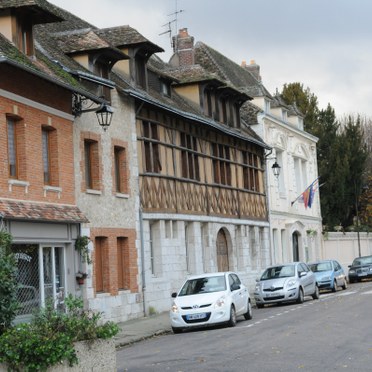

EP 145 LED, a traditional 19th Century style street lantern, is now equipped with LEDs to refurbish historic streets and spaces with a durable, energy efficient solution. A recent test refurbishment of a street in Les Andelys, France, involved replacing five 19th Century style ageing mercury MBF 125 lanterns with five EP 145 LED lanterns, with the aim of achieving better light quality along with energy savings.

A recent test refurbishment of a street in Les Andelys, France, involved replacing five 19th Century style ageing mercury MBF 125 lanterns with five EP 145 LED lanterns, with the aim of achieving better light quality along with energy savings.

The objectives of the project have been successfully achieved, with the average lighting level from 4.3 to 11.2 lux. Energy consumption has also reduced from 140W to just 28W with Bi power nighttime dimming. The long 70,000-hour lifetime (@L70 Ta 25°C,) virtually eliminates the need for routine lamp replacement.

Project Manager, Corinne Delor, explains: "In addition to improving light quality and reducing energy consumption, design continuity was an important consideration for this test project. EP 145 LED has allowed the technology to be updated while keeping the lantern design unchanged. This means the city refurbishment can be implemented street by street without any inconsistency issues.

"Crucially, the white light is maintained but is now comfortable and glare free. The colour rendering index (CRI) has also increased from just 50 to 70, which is particularly important for the lively environment in which the lantern is located."

Les Andelys municipality says: "This new LED lighting gives a nicer feeling of light intensity and better light ambiance. The local contractor, from BLONDEL adds: "With its traditional aesthetics, EP 145 LED perfectly complements this historic street. The quality of light is better too, thanks to the good colour rendering. It's also great to know I will not need to maintain it for a long time."
