Punch

  • Punch
  • Punch
  • Punch
  • Punch

Une simplicité classique : la flexibilité combinée à un look et une sensation de haute qualité.

  • Sa conception est classique et rectiligne, avec une esthétique agréable et intemporelle grâce à sa grille aluminium. Matériaux de qualité qui soulignent la valeur du produit.
  • Distribution lumineuse : distribution lumineuse directe, directe/indirecte (60/40 % ou 50/50 %) et asymétrique, version en aluminium à double parabole et version optique LRO, et UGR<16 font de PUNCH un choix idéal pour une diversité d’applications.
  • Installation : les versions plafonnier ou suspension, ainsi que la possibilité d'un montage en ligne continue ou d’un montage mural offrent une très grande flexibilité.
  • PUNCH est d'un bon rapport qualité-prix pour une durée de vie de 50000 H @L80 à 25°C
  • Des versions pour tous les besoins : IRC80 ou IRC90, mode de secours, interruption à cordon, encarts de différentes tailles pour une rangée continue ou choix entre LRO et optique à grille, pour une multitude de possibilités pour différentes situations.

Matériaux et finition

Corps et embouts : tôle d'acier, peinture poudrée thermolaquée blanche
Grilles : aluminium ultra réfléchissant, double parabole
Diffuseurs : polycarbonate opale
LRO : polyméthylméthacrylate microprismatique (PMMA)

Installation et montage

Suspended direct/indirect: Slidable suspension components for easy mounting, suspensions to be ordered separately (22171581), pre-installed power cord
Suspended direct only: Combine your desired surface-mounted LRO or LV-Variant with the optional suspension accessories (22171581 & 22171349) to be ordered separately
Surface: Suitable for direct surface mounting
Continuous row & Infills: Optional accessories to link individual suspended luminaires together
Wall: Optional wall mounting bracket accessory compatible with all versions

Prescription

To specify state:
A classic designed LED luminaire with double parabolic aluminium louvres or PMMA LRO optics. Direct, direct/indirect and asymmetric light distribution. Surface-mounted, suspended, continuous row (with optional infills) or wall mounting possibility. Direct/indirect split of 60/40%, 3000/4000K colour temperature, CRI >80 or CRI >90, MacAdam 3, IK04, a lifetime of 70 000h @ L80 Ta 25°C, up to UGR <19 and efficacy of up to 133 lm/W. HFIX controllable, pull cord switch, E3 or E3D options available. Standard colour powder coated sheet steel in white (close to RAL9016) - other colours (e.g. silver) on request.
As Thorn Punch

  • New Product
New Product
LumExpress Product
Produit eControl

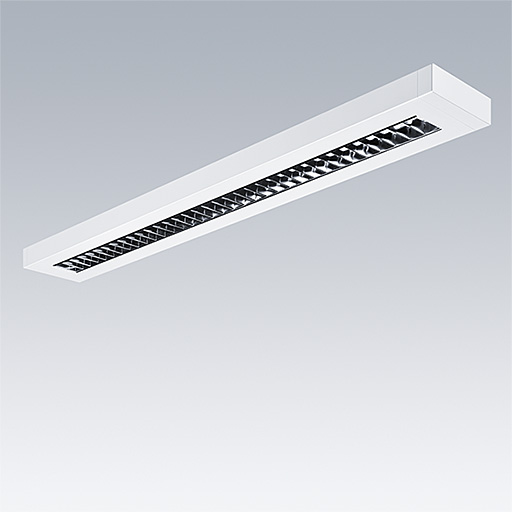

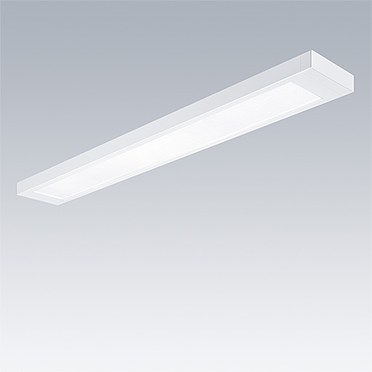

Punch, plafonnier

Description   TypePoids (kg)Code SAP
PUNCH 3 LRO MSC 3200-830 L12 HFLED3.5096636043
PUNCH 3 LRO MSC 3200-840 L12 HFLED3.5096636044
PUNCH 3 LRO MSC 3200-930 L12 HFLED3.5096636033
PUNCH 3 LRO MSC 3200-940 L12 HFLED3.5096636037
PUNCH 3 LRO MSC 3800-830 L15 HFLED3.8096636045
PUNCH 3 LRO MSC 3800-840 L15 HFLED3.8096636046
PUNCH 3 LRO MSC 3800-930 L15 HFLED3.8096636034
PUNCH 3 LRO MSC 3800-940 L15 HFLED3.8096636038
PUNCH 3 LV MSC 4000-830 L12 HFLED3.5096636019
PUNCH 3 LV MSC 4000-840 L12 HFLED3.5096636020
PUNCH 3 LV MSC 4000-930 L12 HFLED3.5096636013
PUNCH 3 LV MSC 4000-940 L12 HFLED3.5096636009
PUNCH 3 LV MSC 6000-830 L15 HFLED3.8096636021
PUNCH 3 LV MSC 6000-840 L15 HFLED3.8096636022
PUNCH 3 LV MSC 6000-930 L15 HFLED3.8096636014
PUNCH 3 LV MSC 6000-940 L15 HFLED3.8096636010

Punch, plafonnier, gradable

Description   TypePoids (kg)Code SAP
<PUNCH 3 LRO MSC 3200-830 L12 HFIXLED6.0096635385
<PUNCH 3 LRO MSC 3800-830 L15 HFIXLED6.5096635387
PUNCH 3 LRO MSC 3200-840 L12 HFIXLED6.0096635386
PUNCH 3 LRO MSC 3200-930 L12 HFIXLED3.5096636049
PUNCH 3 LRO MSC 3200-940 L12 HFIXLED6.0096635391
PUNCH 3 LRO MSC 3800-840 L15 HFIXLED6.5096635388
PUNCH 3 LRO MSC 3800-930 L15 HFIXLED3.8096636050
PUNCH 3 LRO MSC 3800-940 L15 HFIXLED6.5096635392
PUNCH 3 LV MSC 4000-830 L12 HFIXLED3.5096635735
PUNCH 3 LV MSC 4000-840 L12 HFIXLED3.5096635736
PUNCH 3 LV MSC 4000-930 L12 HFIXLED3.5096636025
PUNCH 3 LV MSC 4000-940 L12 HFIXLED3.8096635717
PUNCH 3 LV MSC 6000-830 L15 HFIXLED3.8096635737
PUNCH 3 LV MSC 6000-840 L15 HFIXLED3.8096635738
PUNCH 3 LV MSC 6000-930 L15 HFIXLED3.8096636026
PUNCH 3 LV MSC 6000-940 L15 HFIXLED3.8096635718

Punch, plafond, secours gradable

Description   TypePoids (kg)Code SAP
<PUNCH 3 LRO MSC 3200-830 L12 HFIX E3LED6.2096635401
<PUNCH 3 LRO MSC 3200-840 L12 HFIX E3LED6.2096635402
PUNCH 3 LRO MSC 3200-930 L12 HFIX E3LED3.5096636053
PUNCH 3 LRO MSC 3200-940 L12 HFIX E3LED3.5096635739
PUNCH 3 LRO MSC 3800-830 L15 HFIX E3LED6.8096635403
PUNCH 3 LRO MSC 3800-840 L15 HFIX E3LED6.8096635404
PUNCH 3 LRO MSC 3800-930 L15 HFIX E3LED3.8096636052
PUNCH 3 LRO MSC 3800-940 L15 HFIX E3LED6.8096635408
PUNCH 3 LV MSC 4000-830 L12 HFIX E3LED3.5096635727
PUNCH 3 LV MSC 4000-840 L12 HFIX E3LED3.5096635728
PUNCH 3 LV MSC 4000-930 L12 HFIX E3LED3.5096636029
PUNCH 3 LV MSC 4000-940 L12 HFIX E3LED3.8096635721
PUNCH 3 LV MSC 6000-830 L15 HFIX E3LED3.8096635729
PUNCH 3 LV MSC 6000-840 L15 HFIX E3LED3.8096635730
PUNCH 3 LV MSC 6000-930 L15 HFIX E3LED3.8096636030
PUNCH 3 LV MSC 6000-940 L15 HFIX E3LED3.8096635722

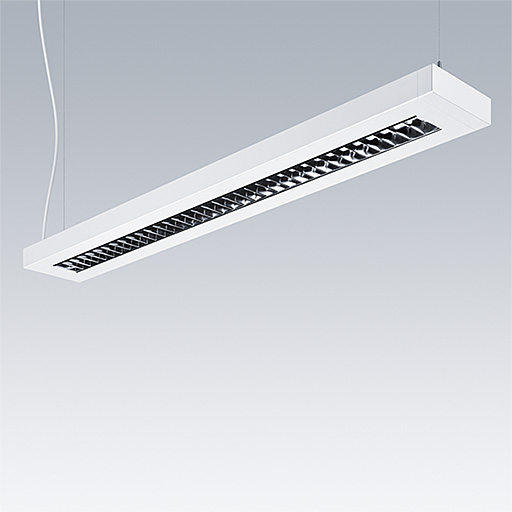

Punch, suspension

Description   TypePoids (kg)Code SAP
<PUNCH 3 ASYM MSP 2200-830 L12 HFLED3.5096630502
<PUNCH 3 ASYM MSP 2200-840 L12 HFLED3.5096630503
PUNCH 3 ASYM MSP 2200-930 L12 HFLED3.5096636057
PUNCH 3 ASYM MSP 2200-940 L12 HFLED3.5096636056
PUNCH 3 LRO MSP 5500-830 L12 HFLED3.5096636039
PUNCH 3 LRO MSP 5500-840 L12 HFLED3.5096636040
PUNCH 3 LRO MSP 5500-930 L12 HFLED3.5096636031
PUNCH 3 LRO MSP 5500-940 L12 HFLED3.5096636035
PUNCH 3 LRO MSP 6600-830 L15 HFLED3.8096636041
PUNCH 3 LRO MSP 6600-840 L15 HFLED3.8096636042
PUNCH 3 LRO MSP 6600-930 L15 HFLED3.8096636032
PUNCH 3 LRO MSP 6600-940 L15 HFLED3.8096636036
PUNCH 3 LV MSP 5500-830 L12 HFLED3.5096636015
PUNCH 3 LV MSP 5500-840 L12 HFLED3.5096636016
PUNCH 3 LV MSP 5500-930 L12 HFLED3.5096636011
PUNCH 3 LV MSP 5500-940 L12 HFLED3.5096636007
PUNCH 3 LV MSP 6600-830 L15 HFLED3.8096636017
PUNCH 3 LV MSP 6600-840 L15 HFLED3.8096636018
PUNCH 3 LV MSP 6600-930 L15 HFLED3.8096636012
PUNCH 3 LV MSP 6600-940 L15 HFLED3.8096636008

Punch, suspension, gradable

Description   TypePoids (kg)Code SAP
<PUNCH 3 ASYM MSP 2200-830 L12 HFIXLED3.5096630508
<PUNCH 3 LRO MSP 5500-830 L12 HFIXLED6.0096635381
<PUNCH 3 LRO MSP 5500-930 L12 HFIX SWDLED6.0096635393
<PUNCH 3 LRO MSP 5500-940 L12 HFIX SWDLED6.0096635394
<PUNCH 3 LRO MSP 6600-930 L15 HFIX SWDLED6.5096635395
<PUNCH 3 LRO MSP 6600-940 L15 HFIXLED6.5096635390
<PUNCH 3 LRO MSP 6600-940 L15 HFIX SWDLED6.5096635396
PUNCH 3 ASYM MSP 2200-840 L12 HFIXLED3.5096630509
PUNCH 3 ASYM MSP 2200-930 L12 HFIXLED3.5096636055
PUNCH 3 ASYM MSP 2200-940 L12 HFIXLED3.5096635741
PUNCH 3 LRO MSP 5500-840 L12 HFIXLED6.0096635382
PUNCH 3 LRO MSP 5500-930 L12 HFIXLED3.5096636047
PUNCH 3 LRO MSP 5500-940 L12 HFIXLED6.0096635389
PUNCH 3 LRO MSP 6600-830 L15 HFIXLED6.5096635383
PUNCH 3 LRO MSP 6600-840 L15 HFIXLED6.5096635384
PUNCH 3 LRO MSP 6600-930 L15 HFIXLED3.8096636048
PUNCH 3 LV MSP 5500-830 L12 HFIXLED3.5096635731
PUNCH 3 LV MSP 5500-840 L12 HFIXLED3.5096635732
PUNCH 3 LV MSP 5500-930 L12 HFIXLED3.5096636023
PUNCH 3 LV MSP 5500-930 L12 HFIX SWDLED3.5096635476
PUNCH 3 LV MSP 5500-940 L12 HFIXLED3.5096635715
PUNCH 3 LV MSP 5500-940 L12 HFIX SWDLED3.5096635477
PUNCH 3 LV MSP 6600-830 L15 HFIXLED3.8096635733
PUNCH 3 LV MSP 6600-840 L15 HFIXLED3.8096635734
PUNCH 3 LV MSP 6600-930 L15 HFIXLED3.8096636024
PUNCH 3 LV MSP 6600-930 L15 HFIX SWDLED3.8096635478
PUNCH 3 LV MSP 6600-940 L15 HFIXLED3.5096635716
PUNCH 3 LV MSP 6600-940 L15 HFIX SWDLED3.8096635479

Punch, suspension, secours gradable

Description   TypePoids (kg)Code SAP
<PUNCH 3 LRO MSP 5500-830 L12 HFIX E3LED6.2096635397
<PUNCH 3 LRO MSP 6600-830 L15 HFIX E3LED6.8096635399
<PUNCH 3 LRO MSP 6600-940 L15 HFIX E3LED6.8096635406
PUNCH 3 LRO MSP 5500-840 L12 HFIX E3LED6.2096635398
PUNCH 3 LRO MSP 5500-840 L12 HFIX E3DLED6.2096635405
PUNCH 3 LRO MSP 5500-930 L12 HFIX E3LED3.5096636054
PUNCH 3 LRO MSP 5500-940 L12 HFIX E3LED3.8096635740
PUNCH 3 LRO MSP 6600-840 L15 HFIX E3LED6.8096635400
PUNCH 3 LRO MSP 6600-840 L15 HFIX E3DLED6.2096635407
PUNCH 3 LRO MSP 6600-930 L15 HFIX E3LED3.8096636051
PUNCH 3 LV MSP 5500-830 L12 HFIX E3LED3.5096635723
PUNCH 3 LV MSP 5500-840 L12 HFIX E3LED3.8096635724
PUNCH 3 LV MSP 5500-930 L12 HFIX E3LED3.5096636027
PUNCH 3 LV MSP 5500-940 L12 HFIX E3LED3.5096635719
PUNCH 3 LV MSP 6600-830 L15 HFIX E3LED3.5096635725
PUNCH 3 LV MSP 6600-840 L15 HFIX E3LED3.8096635726
PUNCH 3 LV MSP 6600-930 L15 HFIX E3LED3.8096636028
PUNCH 3 LV MSP 6600-940 L15 HFIX E3LED3.5096635720

Punch, accessoires
