WeatherForce

  • WeatherForce

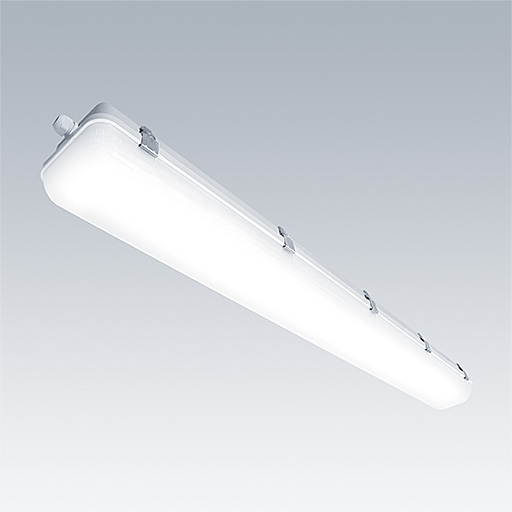

A linear IP65 water resistant LED or fluorescent luminaire, specifically designed for general outdoor applications

  • A deep sealing channel to ensure IP65 resistance
  • UV stabilised polycarbonate diffuser
  • Available in LED, T5 or T8 light source options
  • LED versions have a L70 rating of 50,000 hrs at Ta 40° C

Materials and Finish

Body: canopy injection moulded polycarbonate in light grey.
Diffuser: injection moulded UV stabillised clear polycarbonate.
Gear tray: sheet steel, white powdercoat paint finish.
Toggles: stainless steel.
Mounting Brackets: Steel or 316 Stainless steel

Installation and Mounting

Cable entry positions at each end of fitting. Screw fixing through identified locations in the back of fitting. Toggles are easy and quick to close by hand. (Basic tool required to open toggles).

Specification

To specify state:
Weather resistant IP65 fluorescent or LED fitting with polycarbonate body and diffuser for LED, T5 or T8 lamp options.
As Thorn WheatherForce.

  • New Product
New Product
LumExpress Product
eControl Product

WeatherForce LED High Frequency

Description   TypeWt (kg)SAP Code
WF LED 2300 HF L600 L840LED2.4096539546
WF LED 4800 HF L1200 L840LED3.2096539545

WeatherForce LED High Frequency, emergency

Description   TypeWt (kg)SAP Code
WF LED 2300 HFELI2 L600 L840LED3.0096541100
WF LED 4800 HFELI2 L1200 L840LED5.0096541099

WeatherForce LED Gear Tray Retrofit Kit

Description   Wt (kg)SAP Code
WF LED 2300 HF L600 RETRO KIT2.1096539556
WF LED 4800 HF L1200 RETRO KIT2.9096539555

WeatherForce T16 High Frequency

Description   TypeSocketWt (kg)SAP Code
WF 1x14W HF L840FDHG52.3096059915
WF 1x28W HF L840FDHG52.5096058255
WF 1x49W HF L840FDHG53.3096059916
WF 2x14W HF L840FDHG52.4096058256
WF 2x28W HF L840FDHG53.2096058252
WF 2x49W HF L840FDHG53.9096059917

WeatherForce T16 High Frequency, emergency

Description   TypeSocketWt (kg)SAP Code
WF 1x28W HF E2M L840FDHG53.0096059345
WF 2x14W HF E2M L840FDHG52.9096058443
WF 2x28W HF E2M L840FDHG53.7096058445

WeatherForce T16 High Frequency, dimmable

Description   TypeSocketWt (kg)SAP Code
WF 1x28W HFIFDHG53.1096059920
WF 1x49W HFIFDHG53.9096059922
WF 2x14W HFI L840FDHG53.0096059919
WF 2x28W HFI 840FDHG53.8096059921
WF 2x49W HFI L840FDHG54.5096063190

WeatherForce T26 Switchstart

Description   TypeSocketWt (kg)SAP Code
WF 1x18W L840FDG132.7096038931
WF 1x36W L840FDG132.9096038932
WF 1x58W L840FDG133.6096059906
WF 2x18W L840FDG132.8096038933
WF 2x36W L840FDG134.2096038934
WF 2x58W L840FDG134.9096059907

WeatherForce T26 High Frequency

Description   TypeSocketWt (kg)SAP Code
WF 1x18W HF L840FDG132.3096038935
WF 1x36W HF L840FDG132.5096038936
WF 1x58W HF L840FDG133.3096059908
WF 2x18W HF L840FDG132.4096038937
WF 2x36W HF L840FDG133.2096038938
WF 2x58W HF L840FDG133.9096059909

WeatherForce T26 High Frequency, emergency

Description   TypeSocketWt (kg)SAP Code
WF 1x36W HF E2M L840FDG133.0096059784
WF 2x18W HF E2M L840FDG132.9096040892
WF 2x36W HF E2M L840FDG133.7096060109

WeatherForce T26 High Frequency, dimmable

Description   TypeSocketWt (kg)SAP Code
WF 1x18W HFIFDG132.9096059910
WF 1x36W HFI L840FDG133.1096059377
WF 1x58W HFI L840FDG133.9096059913
WF 2x18W HFIFDHG53.0096059911
WF 2x36W HFI L840FDG133.8096062163
WF 2x58W HFI L840FDG134.5096059914

WeatherForce Accessories

Description   Wt (kg)SAP Code
<WF TWIN LAMP MSF KIT 316S/S0.0096541789
WF SINGLE LAMP MCE KIT 316S/S0.0096541788
