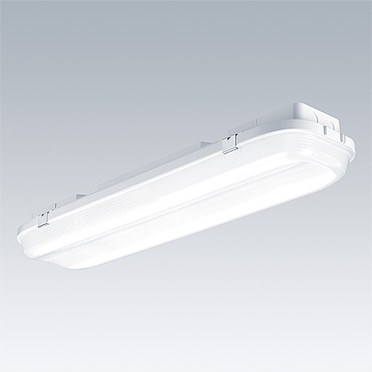

A robust dust, dirt and moisture and shock-proof luminaire with IP66 and IK10.

  • Design: A compact and lightweight fully recycable aluminium body with a UV stabilised polycarbonate diffuser with linear prisms.
  • Efficiency: High efficiency up to 150 lm/W for 3 different lumen outputs 4000, 7000 and 10,000 lm.
  • Light distribution: a wide beam distribution with 8% indirect light and UGR<25 for 4000 lm
  • Installation: Flexible mounting options with BESA, suspended mounting and outdoor wall mounting (see mounting instructions for details).
  • ADDITIONAL OPTIONS: Dimmable (HFI), Emergency (E3, E3D), BasicDIM Wireless (BC), Sensors (MWBC, MWS), Corridor Function (COR,...), Quick Connector & Through Wiring (TW,QC3, QC5,...). See myProduct for all options.

Materials and Finish

Canopy: fully recyclable die cast aluminium painted white RAL 9010
Diffuser: UV stabilised polycarbonate with linear prisms
Gasket: silicone sponge
Fastening clips: stainless steel
Quick fix brackets: stainless steel

Installation and Mounting

For surface, suspended and BESA mounting. Quick-fix installation brackets are supplied with each luminaire for surface mounting and optional suspension kit is available (Chain 96502605 & Hook 96631103).

Specification

To specify state:
A robust dust, dirt and moisture and shock-proof luminaire with IP66 and IK10.
Compact and lightweight fully recyclable aluminium
body with a UV stabilised polycarbonate diffuser with linear prisms polycarbonate diffusers and stainless steel clips.
High efficiency up to 150 lm/W and 3 different lumen outputs 4000, 7000 and 10,000 lm. Ra80, 4000K, long service life of 100000 hours. Surface-mounted, suspended or wall mounting possibility. Quick connectors, Through wiring, Corridor Functions, Wireless communication, Microwave Sensor, dimmable, E3, E3D options available.

As Thorn ForceLED.
