Chartor

  • Chartor
  • Chartor

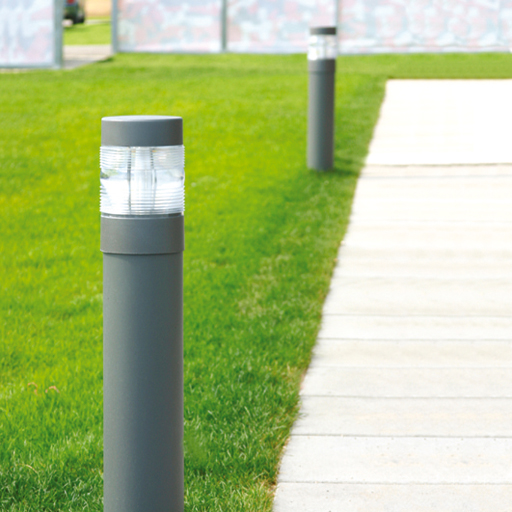

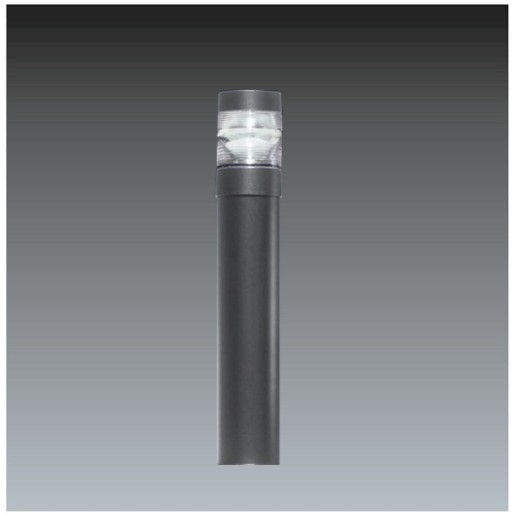

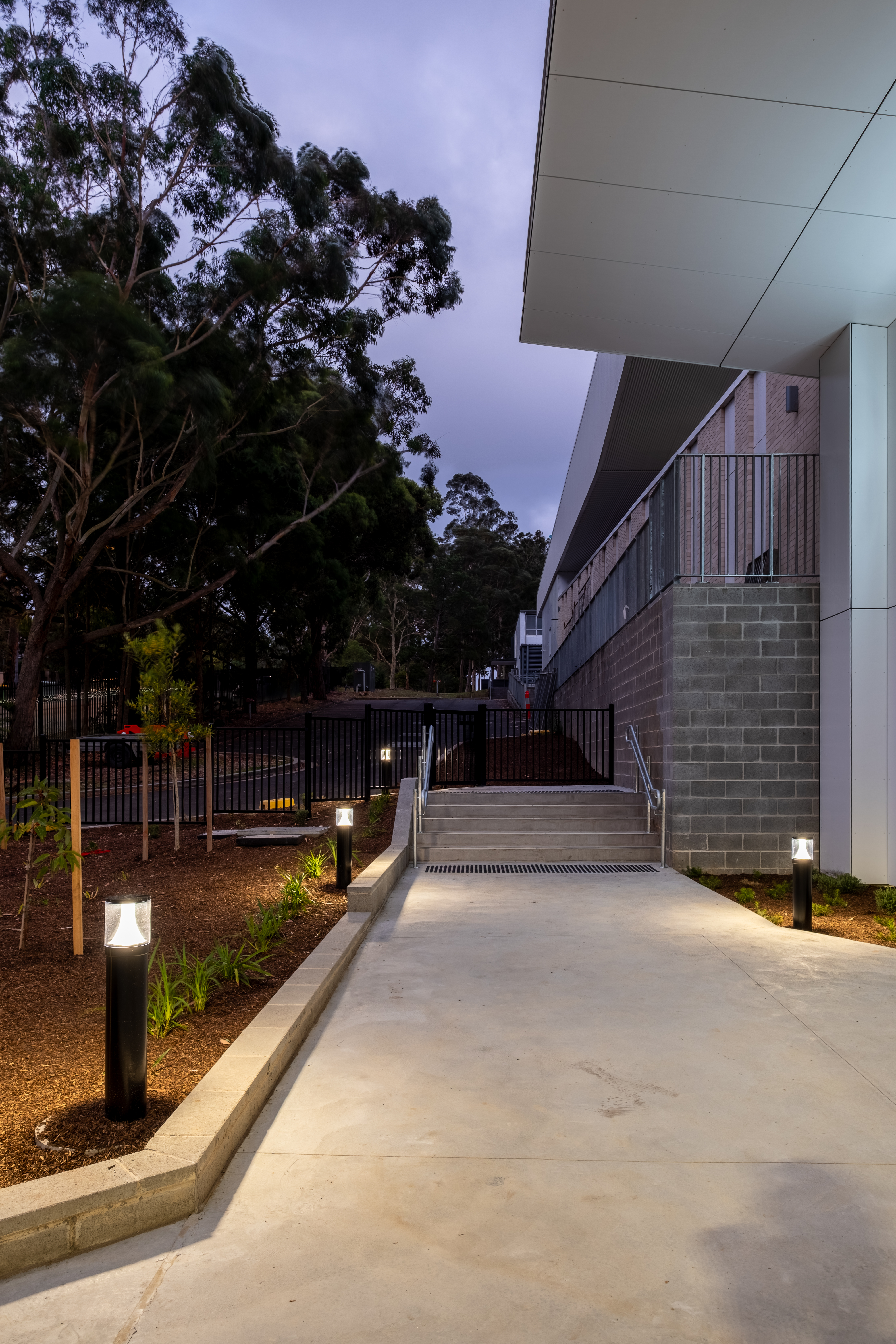

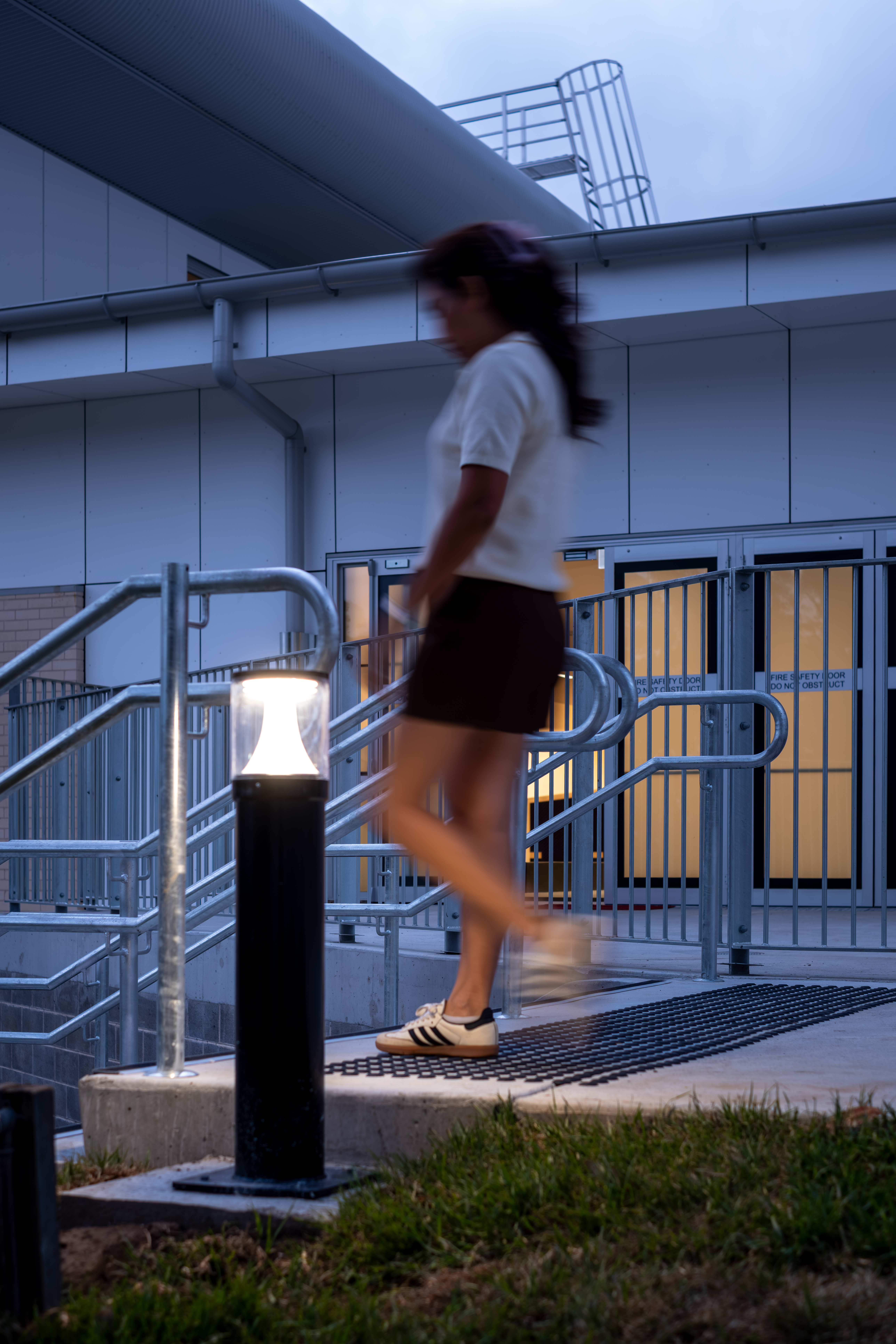

A timeless bollard offering modest visual guidance and comfortable white light with minimal glare due to the semi-opal anti-UV PC diffuser

  • Suitable for any application thanks to high specs and two mounting types: base plate (MPL) and ground (MGR)
  • Simply order one post and one head, for a complete bollard.
  • The LED head can be easily connected to all Chartor Bollard types for refurbishment to a low power, low maintenance luminaire. Simply connect the LED driver directly to the mains

Materials and Finish

Head: die-cast aluminium, colours available to special order.
Lenses: clear polycarbonate.
Internal optics: die-cast aluminium.
Post: galvanised aluminium or painted powder coat black, other colours available to special order.

Installation and Mounting

Base plate or buried mounting, latter option embeds 450mm into the ground. 250mm base plate version fixes via four Ø 15mm holes at 200mm centres. Ø 60mm central hole for wiring. Three way terminal block for 2 x 4mm² cable.

Specification

To specify state:
Circular section aluminium bollard with fresnel lens head.
As Thorn Chartor.

New Product
LumExpress Product
eControl Product

Chartor, head, black

DescriptionLuminaire power (W)Luminaire output (lm)   TypeSocketWt (kg)SAP Code
CHARTOR HEAD LF 1X26W TC-T 830 BKFSMGX24q-32.9096038284
CHARTOR HEAD LF 1X50W HID BK3.1096015176
CHARTOR HEAD LF E27 BK2.0096063122
CHARTOR HEAD LF LED1500-840 BK271095LED2.3096646244

Chartor, head, aluminium

DescriptionLuminaire power (W)Luminaire output (lm)   TypeSocketWt (kg)SAP Code
CHARTOR HEAD LF 1X26W TC-T 830 ALFSMGX24q-32.9096015173
CHARTOR HEAD LF 1X50W HID AL3.1096015174
CHARTOR HEAD LF E27 AL2.0096063107
CHARTOR HEAD LF LED1500-840 AL271095LED2.3096646179

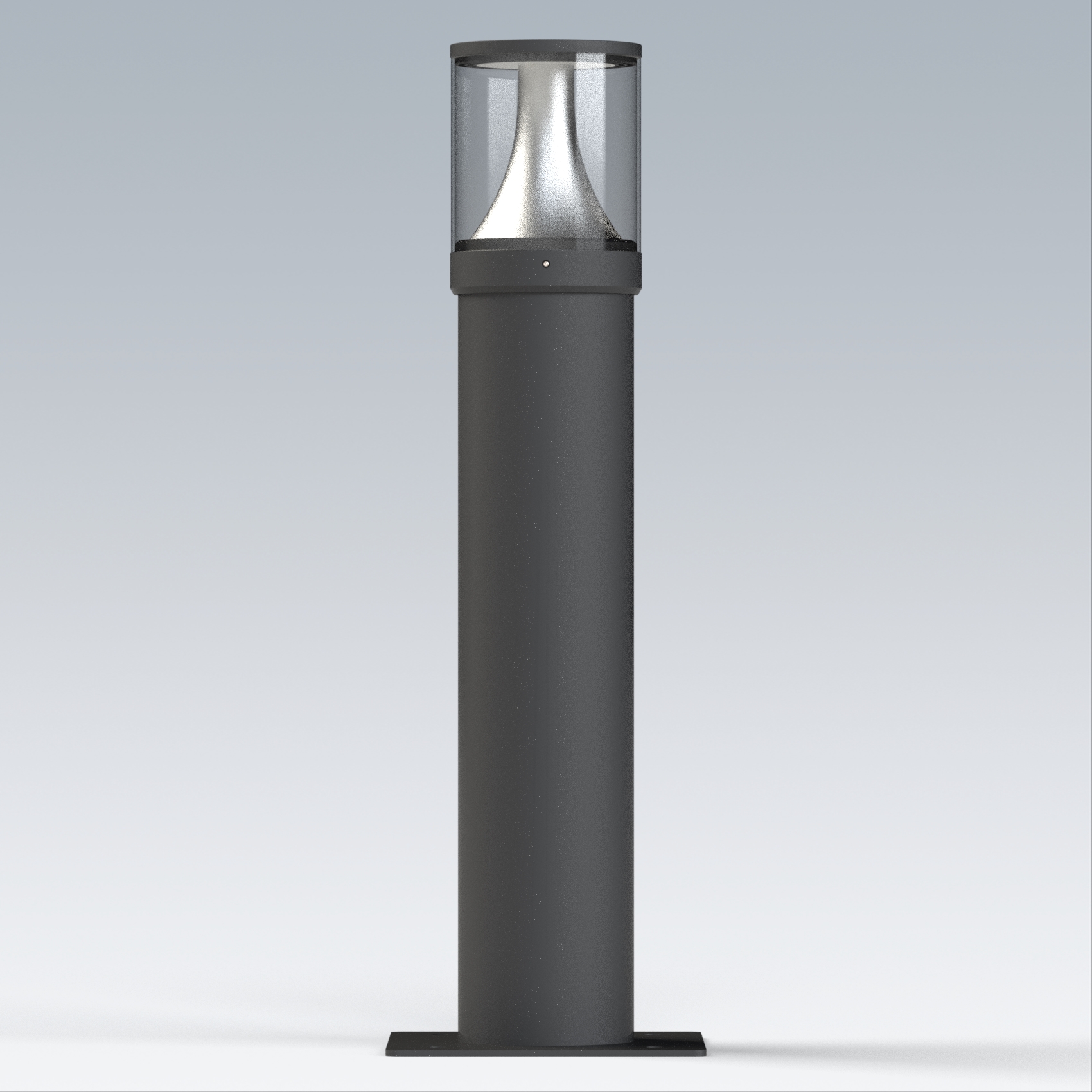

Chartor, post, black

Description   Wt (kg)SAP Code
CHARTOR POST MGR BK10.0096018951
CHARTOR POST MPL BK12.0096018939

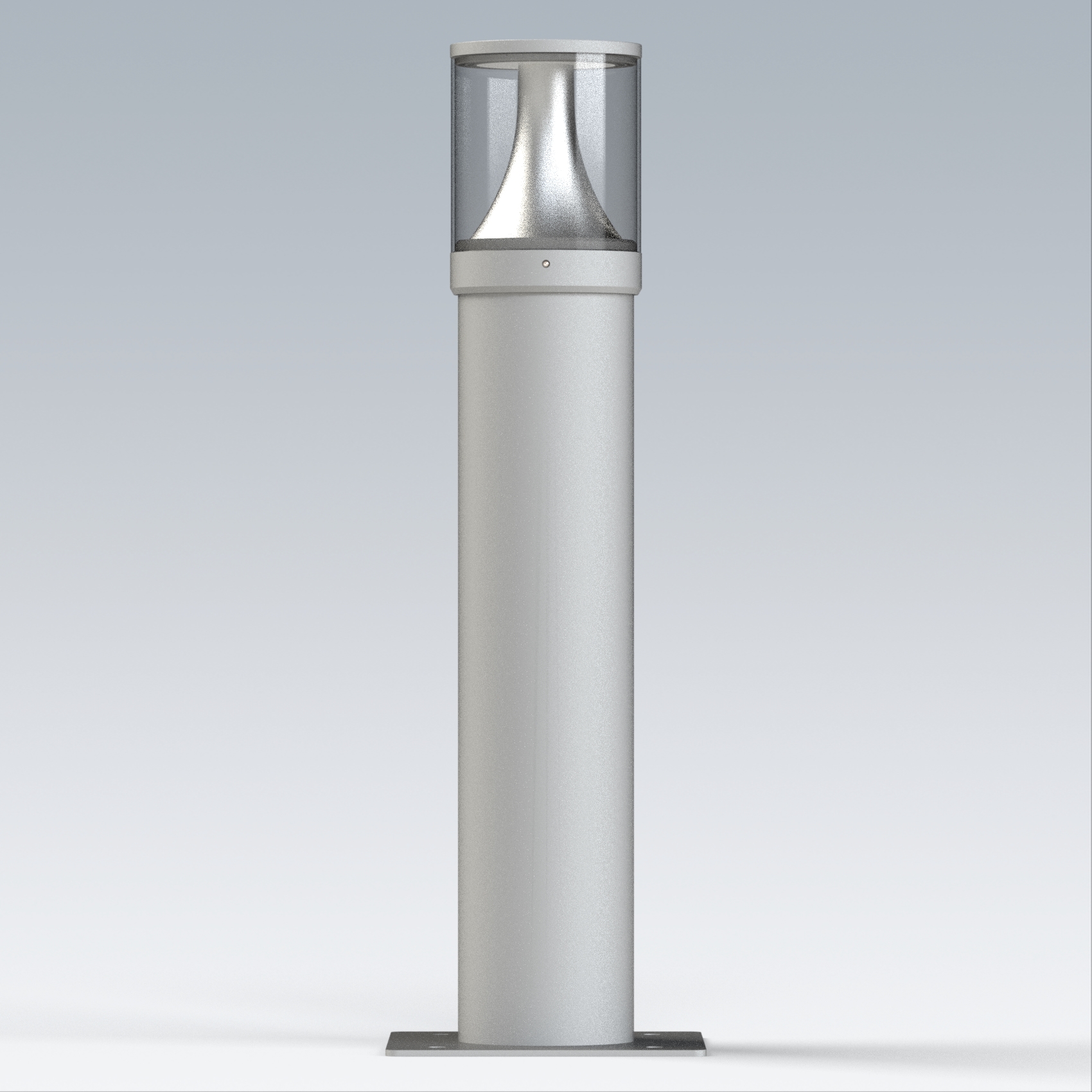

Chartor, post, galvanised

Description   Wt (kg)SAP Code
CHARTOR POST MGR GAL10.0096031975
CHARTOR POST MPL GAL12.0096031973
