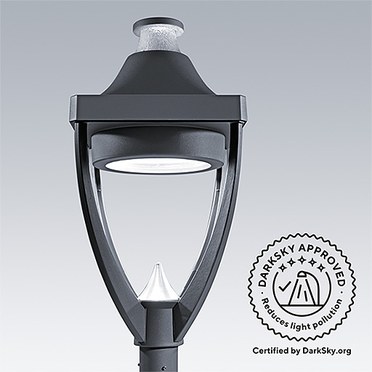

A modern heritage post-top or suspended lantern upgraded with high performance light engines

  • IDA Dark Sky Approved
  • *IDA fixture seal of approval relates to <= 3000 K only and clear enclosures. Luminaires must be mounted as photometered. Models without illuminated top cap only.
  • Beautiful aesthetics with the post top and suspended versions now almost identical for consistency
  • Available with LEDs (3800/5000lm) for retrofits and more CPO versions
  • Compatible with Bi power, DALI and Telea, providing advanced dimming and control to reduce energy consumption
  • The post top lantern is now D60 as standard and available with or without an illuminated top cap

Materials and Finish

Body: die-cast aluminium (EN AC-44300), powder coated grey 900 textured finish (cloase to RAL 7043)
Enclosure: flat toughened glass
Reflector: highly reflective anodised aluminium
Standard corrosion class C5 according to ISO 9223: 2012.

Installation and Mounting

Post-top mounted (MTP) version on shaft through 3xM8 stainless steel screws on poles with D60mm x 100mm spigot. Suspended (MSU) version fixed through with a 34G threaded tube. Recommended mounting heights: 4 to 6m.

Specification

To specify state:
Post-top or suspended 4 arm lantern in die-cast aluminium painted in dark grey, flat toughened glass, with aluminium reflector embodied in an IP65 compartment. Decorative light emission on the top of the lantern / ULOR 0.
As Thorn Legend.

New Product
LumExpress Product
eControl Product

Legend Suspended, LED

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
LEGEND 36L50 RC 730 BP CL1 MSU 34G556732LED16.5096262559
LEGEND 36L50 RC 730 BP CL2 MSU 34G556732LED16.5096262698
LEGEND 36L50 RC 730 BP PM CL1 MSU 34G556732LED16.5096262561
LEGEND 36L50 RC 730 CL1 MSU 34G556732LED16.5096262557
LEGEND 36L50 RC 730 CL2 MSU 34G556732LED16.5096262696
LEGEND 36L50 RC 740 BP CL1 MSU 34G557384LED16.5096262558
LEGEND 36L50 RC 740 BP CL2 MSU 34G557384LED16.5096262699
LEGEND 36L50 RC 740 BP PM CL1 MSU 34G557384LED16.5096262560
LEGEND 36L50 RC 740 CL1 MSU 34G557384LED16.5096262556
LEGEND 36L50 RC 740 CL2 MSU 34G557384LED16.5096262697
LEGEND 36L70 RC 730 BP CL1 MSU 34G778914LED16.5096262565
LEGEND 36L70 RC 730 BP CL2 MSU 34G778914LED16.5096262702
LEGEND 36L70 RC 730 BP PM CL1 MSU 34G778914LED16.5096262567
LEGEND 36L70 RC 730 CL1 MSU 34G778914LED16.5096262563
LEGEND 36L70 RC 730 CL2 MSU 34G778914LED16.5096262700
LEGEND 36L70 RC 740 BP CL1 MSU 34G779777LED16.5096262564
LEGEND 36L70 RC 740 BP CL2 MSU 34G779777LED16.5096262703
LEGEND 36L70 RC 740 BP PM CL1 MSU 34G779777LED16.5096262566
LEGEND 36L70 RC 740 CL1 MSU 34G779777LED16.5096262562
LEGEND 36L70 RC 740 CL2 MSU 34G779777LED16.5096262701
LEGEND LED 36L50 RC 722 BP CL2 MSU34G U1555646LED16.5096669730
LEGEND LED 36L50 RC 727 BP CL2 MSU34G U1556081LED16.5096633428
LEGEND LED 36L50 RC 730 BP CL2 MSU34G U1556732LED16.5096633502

Legend Post top, closed optic, LED

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
LEGEND 36L50 RC 722 BP CL2 T60 U1555646LED17.5096669729
LEGEND 36L50 RC 727 BP CL2 T60 U1556081LED17.5096633427
LEGEND 36L50 RC 730 BP CL1 T60556732LED17.5096262576
LEGEND 36L50 RC 730 BP CL2 T60 U1556732LED17.5096633498
LEGEND 36L50 RC 730 BP CL2 T60.556732LED17.5096262623
LEGEND 36L50 RC 730 BP PM CL1 T60556732LED17.5096262578
LEGEND 36L50 RC 730 CL2 T60556732LED17.5096262619
LEGEND 36L50 RC 730 CL2 T60 U1556732LED17.5096633497
LEGEND 36L50 RC 740 BP CL1 T60557384LED17.5096262577
LEGEND 36L50 RC 740 BP CL2 T60557384LED17.5096262624
LEGEND 36L50 RC 740 BP PM CL1 T60557384LED17.5096262579
LEGEND 36L50 RC 740 CL2 T60557384LED17.5096262620
LEGEND 36L70 NR 722 BP CL2 T60 U1777243LED17.5096669728
LEGEND 36L70 NR 727 BP CL2 T60 U1777800LED17.5096633426
LEGEND 36L70 NR 730 BP CL2 T60778635LED17.5096275399
LEGEND 36L70 NR 730 BP CL2 T60 U1778635LED17.5096633501
LEGEND 36L70 NR 730 CL2 T60 U1778635LED17.5096633500
LEGEND 36L70 RC 730 BP CL1 T60778914LED17.5096262580
LEGEND 36L70 RC 730 BP CL2 T60778914LED17.5096262631
LEGEND 36L70 RC 730 BP CL2 T60 U1778914LED17.5096633499
LEGEND 36L70 RC 730 BP PM CL1 T60778914LED17.5096262582
LEGEND 36L70 RC 730 CL2 T60778914LED17.5096262627
LEGEND 36L70 RC 740 BP CL1 T60779777LED17.5096262581
LEGEND 36L70 RC 740 BP CL2 T60779777LED17.5096262632
LEGEND 36L70 RC 740 BP PM CL1 T60779777LED17.5096262583
LEGEND 36L70 RC 740 CL2 T60779777LED17.5096262628

Legend Post top, perforated optic, LED
