Cruz MSF / CRUZ MSF 140 2750-840 WD HF

22682091

▼ Data Sheet

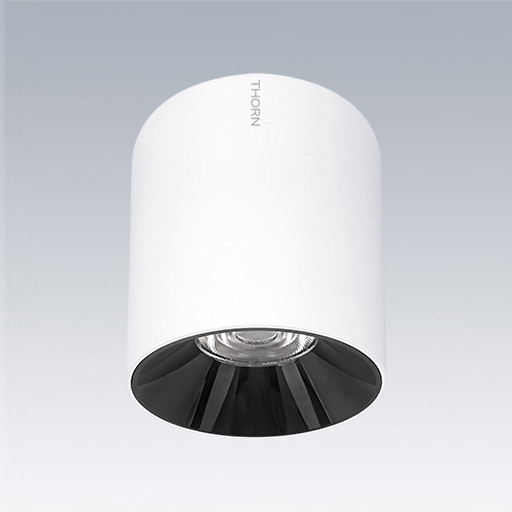

Highly efficient integrated LED surface-mounted downlight with lens and anti-glare reflector provides harmonious light. A surface mounted LED luminaire. On-off control gear Class I electrical, IP20, Impact strength: IK06. Body: aluminium, white (RAL9003). Can be suspended by using wire suspension and rope suspension accessory kits (to be ordered separately)..

Dimensions: Ø140 x 145 mm
Luminaire input power: 24 W
Luminaire efficacy: 115 lm/W
Weight: 1.2 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:2750 lm
  • Luminaire efficacy*:115 lm/W
  • Colour Rendering Index min.:80
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L80 50000 h at 35 °C
  • Ballast:1x LED_DRV
  • Luminaire input power*:24 W Power factor = 0.9
  • Dimming:ON_OFF
  • Maintenance category CIE 97:C - Closed Top Reflector
  • LED
  • CCC
  • 850°
  • IK06
  • IP20
  • LED
  • RCM
  • SC1 - Protection Class 1
  • Ta = -20 to +45
