  • Cruz MSF — CRUZ MSF 195 6200-840 WD HF IP65

Cruz MSF / CRUZ MSF 195 6200-840 WD HF IP65

22682094

▼ Data Sheet

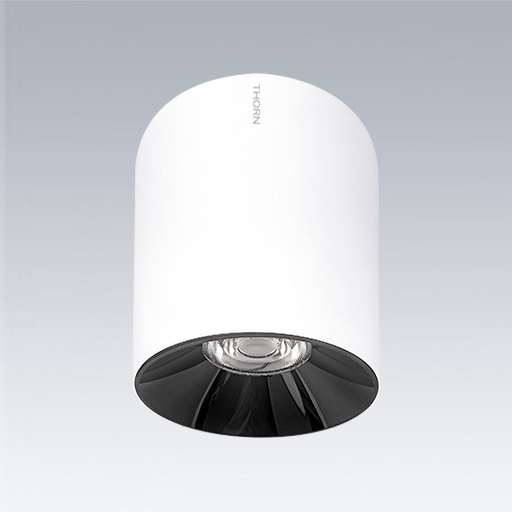

Highly efficient integrated LED surface-mounted downlight with lens and anti-glare reflector provides harmonious light. A surface mounted LED luminaire. On-off control gear Class I electrical, IP65, Impact strength: IK06. Body: aluminium, white (RAL9003). Can be suspended by using wire suspension and rope suspension accessory kits (to be ordered separately)..

Dimensions: Ø195 x 215 mm
Luminaire input power: 55 W
Luminaire efficacy: 113 lm/W
Weight: 3 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:6200 lm
  • Luminaire efficacy*:113 lm/W
  • Colour Rendering Index min.:80
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L80 50000 h at 35 °C
  • Ballast:1x LED_DRV
  • Luminaire input power*:55 W Power factor = 0.9
  • Dimming:ON_OFF
  • Maintenance category CIE 97:C - Closed Top Reflector
  • LED
  • CCC
  • 850°
  • IK06
  • IP65
  • LED
  • RCM
  • SC1 - Protection Class 1
  • Ta = -20 to +45

▼ Photometry

Photometric configuration

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.
