  • Axyl Geo — AXYL GEO H600 1L 940 A/S HFX BLK

Axyl Geo / AXYL GEO H600 1L 940 A/S HFX BLK

96700513

▼ Data Sheet

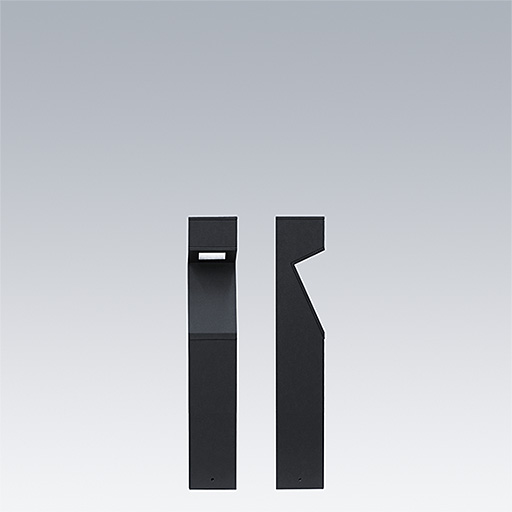

Axyl Geo, a free-standing, decorative LED bollard with asymmetrical distribution. Class I electrical.. DALI-2 dimmable LED driver. , IP65, Impact strength: IK06. Housing: Die-cast aluminium, powder coated textured. Working ambient temperature: -20°C to +45°C. Complete with 4000K LED..

Dimensions: 120 x 120 x 600 mm
Luminaire input power: 15.8 W
Luminaire luminous flux: 609 lm
Luminaire efficacy: 39 lm/W
Weight: 6.96 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:609 lm
  • Luminaire efficacy*:39 lm/W
  • Colour Rendering Index min.:90
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated useful life (B10)*:L80 70000 h at 25 °C
  • Ballast:1x LED_DRV
  • Luminaire input power*:15.8 W Power factor = 0.96
  • Dimming:Dali2Dim
  • LED
  • IK06
  • IP65
  • SC1 - Protection Class 1
