  • Axyl Greet Bollard — AXYL GREETB H580 DE 56L 927 A/S HFX ANT

Axyl Greet Bollard / AXYL GREETB H580 DE 56L 927 A/S HFX ANT

96700684

▼ Data Sheet

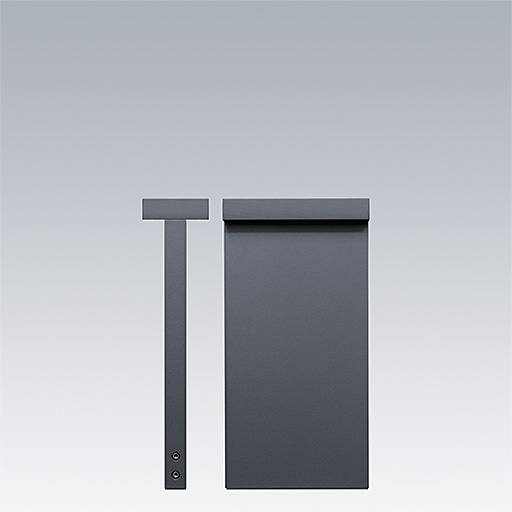

Axyl Greet B, height 580, a free-standing, decorative LED bollard with asymmetrical distribution. Class II electrical.. DALI-2 dimmable LED driver. , IP65, Impact strength: IK06. Housing: Die-cast aluminium, powder coated textured anthracite. Working ambient temperature: -20°C to +50°C. Complete with 2700K LED..

Dimensions: 130 x 290 x 580 mm
Luminaire input power: 21.6 W
Luminaire luminous flux: 1725 lm
Luminaire efficacy: 80 lm/W
Weight: 6.68 kg

Mode selection
    • IK06
    • IP65
    • SC2 - Protection Class 2

    ▼ Photometry

    Photometric configuration

    ▼ CalcExpress

    Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

    Step 1: Technical data
    (lm)
    (m)
    (m)
    (%)
    Step 2: Room Data
    (m)
    (m)
    (m)
    (m)
    (%)
    Step 3: Result
    (lx)
    (%)
