  • Axyl Greet Bollard — AXYL GREETB H870 SE 56L 927 A/S HFX BK

Axyl Greet Bollard / AXYL GREETB H870 SE 56L 927 A/S HFX BK

96700658

▼ Data Sheet

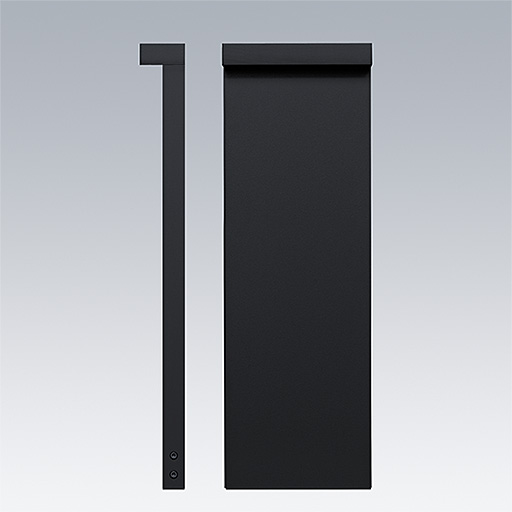

Axyl Greet B, height 870, a free-standing, decorative LED bollard with asymmetrical distribution. Class II electrical.. DALI-2 dimmable LED driver. , IP65, Impact strength: IK06. Housing: Die-cast aluminium, powder coated textured black (close to RAL9005). Working ambient temperature: -20°C to +50°C. Complete with 2700K LED..

Dimensions: 85 x 290 x 870 mm
Luminaire input power: 11.3 W
Luminaire luminous flux: 761 lm
Luminaire efficacy: 67 lm/W
Weight: 8.87 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:761 lm
  • Luminaire efficacy*:67 lm/W
  • Colour Rendering Index min.:90
  • Correlated colour temperature*:2700 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated useful life (B10)*:L80 70000 h at 25 °C
  • Ballast:1x LED_DRV
  • Luminaire input power*:11.3 W Power factor = 0.95
  • Dimming:Dali2Dim
  • LED
  • IK06
  • IP65
  • SC2 - Protection Class 2

▼ Photometry

Photometric configuration
