  • Cesar Strut — CESAR STRUT H3500 1L930 S/S HFX ANT

Cesar Strut / CESAR STRUT H3500 1L930 S/S HFX ANT

96700285

▼ Data Sheet

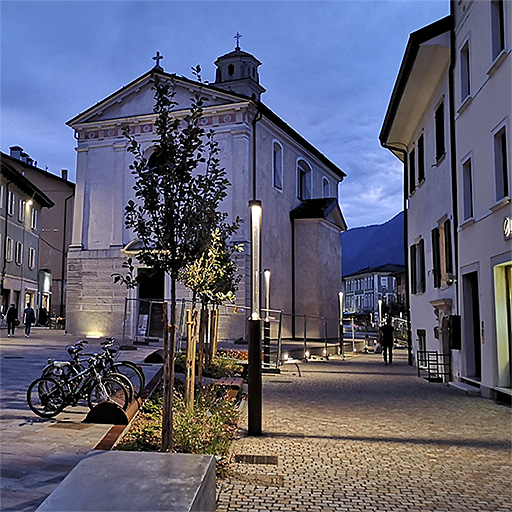

Cesar STRUT a free-standing, architectural LED luminaire for decorative facade lighting, distribution. DALI-2 dimmable LED driver. Class II electrical, IP65, Impact strength: IK10. Housing: die-cast aluminium, powder coated anthracite. Working ambient temperature: -20°C to +50°C. Complete with 3000K LED.

Dimensions: Ø200 x 3500 mm
Luminaire input power: 55 W
Luminaire luminous flux: 4235 lm
Luminaire efficacy: 77 lm/W
Weight: 31.28 kg

Mode selection
    • IK10
    • IP65
    • SC2 - Protection Class 2

    ▼ Photometry

    Photometric configuration

    ▼ CalcExpress

    Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

    Step 1: Technical data
    (lm)
    (m)
    (m)
    (%)
    Step 2: Room Data
    (m)
    (m)
    (m)
    (m)
    (%)
    Step 3: Result
    (lx)
    (%)
