Plurio / PLD D 18L35-740 R/S BS 3550 T60 CL1 GY

96668650

Data Sheet

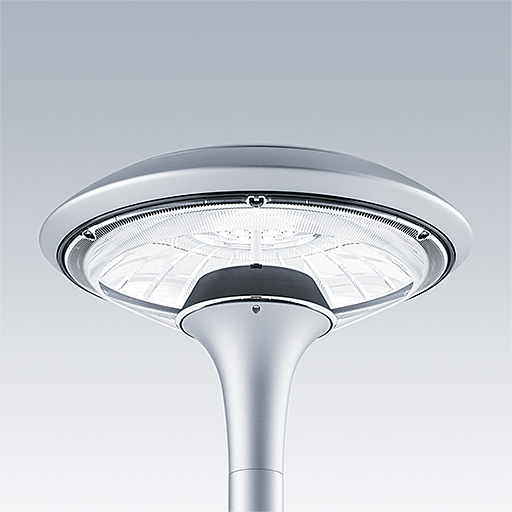

Plurio Direct: A decorative post-top LED lantern with radially symmetric distribution. LED driver with 18 LEDs driven at 350mA. Class I electrical, IP66, IK08. Base: cast aluminium, powder coated silver-grey. Canopy: disc shape, aluminium, textured silver-grey. Diffuser: UV stabilised, clear polycarbonate with anti-glare prisms. Direct, lens based optic with internal reflector. Equipped with 50% power reduction circuit, effective 3 hours before and 5 hours after a calculated midnight. It can be deactivated at installation with an easily accessible internal switch. Complete with 4000K LED. Post top mounting to Ø60mm column.

Upward lighting emissions below 1%.

Dimensions: Ø618 x 453 mm
Luminaire input power: 19.7 W
Luminaire luminous flux: 2727 lm
Luminaire efficacy: 138 lm/W
Weight: 11 kg
Scx: 0.151 m²

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:2727 lm
  • Luminaire efficacy*:138 lm/W
  • Colour Rendering Index min.:70
  • Ballast:1 x 28003160 LCO 40/200-1050/64 o4a NF C EXC3
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):5
  • Rated useful life (B10)*:L95 100000 h at 25 °C
  • Luminaire input power*:19.7 W
  • Dimming:BP2
  • LED
  • ENEC11 +
  • GLedReP
  • IK08
  • IP66
  • Coastal_C5
  • LLedReP
  • RCM
  • SC1 - Protection Class 1
  • Ta=25
