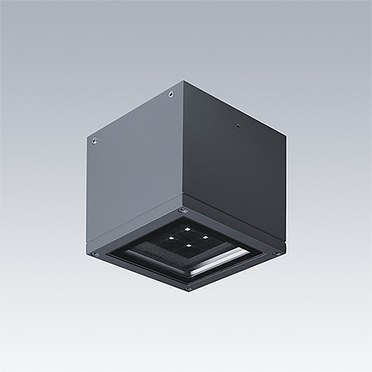

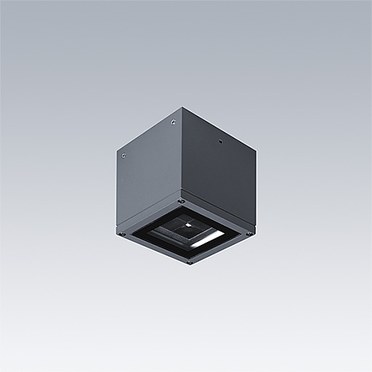

Axyl Echo Ceiling

  • Axyl Echo Ceiling
  • Axyl Echo Ceiling

Axyl Echo Ceiling - ceiling-mounted luminaires with tiltable optics to allow complex schemes with minimalist design

  • Square ceiling light available in two sizes (small, medium) and four standard Thorn's colours (grey, anthracite, black, white).
  • Available with multiple light distributions : Narrow, Medium, Wide Beam . Tilt +/- 15° to allow adjustment on site of the light effect.
  • Available in 2700K, 3000K, 4000K and CRI90.
  • Axyl Echo Ceiling is available Non-Dim or with DALI2 connectivity (remote driver option) for Small Size.
  • IK06 & IP65

Materials and Finish

Die-cast aluminium housing EN-AC 44300.
Screws treated with Geomet anti-galvanic coating.
Clear toughened glass.
Silicone gaskets.
Double Powder paint process.

Suitable for C3 (standard corrosion class according to ISO 9223 : 2012)

Installation and Mounting

Suitable for ceiling mounting with 2 fixing points for accurate positionning.
Quick connection on mouting base.
Fixing anchors, sealing rings and screws delivered.

Cable size :
Small HF : 3x1mm² - 3x1,5mm²
Small RD : 2x1mm² - 2x1,5mm²
Medium : 5x1,5mm²


Remote DALI-2 driver to be ordered separately.

Specification

To specify state:
A sqaure compact ceiling light available in two sizes (small and medium) and four standard colours (grey, anthracite, black and white). Axyl Echo is also available as a wall light to give a visual identity to the entire project. The (adjustable) LED optics provides glare control and better light control while offering different light distributions. Available in 2700K, 3000K and 4000K with a CRI of 90, ideal for residential applications and building entrances.
Integrated non-dimmable driver for small versions, with the option of integrating DALI2 dimming via a remote driver to be controlled separately with an RD luminaire. Integrated DALI2 driver on medium versions.
Robustness: IP65 & IK06.
As Thorn Axyl Echo Ceiling

New Product
LumExpress Product
eControl Product

▼ Axyl Echo Cei, Small Size Medium Beam

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
AXYL ECHO S CEI 4L 927 MB HF ANT8421LED1.4596801328
AXYL ECHO S CEI 4L 927 MB HF BK8421LED1.4596801326
AXYL ECHO S CEI 4L 927 MB HF GY8421LED1.4596801327
AXYL ECHO S CEI 4L 927 MB HF WH8421LED1.4596801325
AXYL ECHO S CEI 4L 927 MB RD ANT8421LED1.4596801364
AXYL ECHO S CEI 4L 927 MB RD BK8421LED1.4596801362
AXYL ECHO S CEI 4L 927 MB RD GY8421LED1.4596801363
AXYL ECHO S CEI 4L 927 MB RD WH8421LED1.4596801361
AXYL ECHO S CEI 4L 930 MB HF ANT8459LED1.4596801336
AXYL ECHO S CEI 4L 930 MB HF BK8459LED1.4596801334
AXYL ECHO S CEI 4L 930 MB HF GY8459LED1.4596801335
AXYL ECHO S CEI 4L 930 MB HF WH8459LED1.4596801333
AXYL ECHO S CEI 4L 930 MB RD ANT8459LED1.4596801372
AXYL ECHO S CEI 4L 930 MB RD BK8459LED1.4596801370
AXYL ECHO S CEI 4L 930 MB RD GY8459LED1.4596801371
AXYL ECHO S CEI 4L 930 MB RD WH8459LED1.4596801369
AXYL ECHO S CEI 4L 940 MB HF ANT8497LED1.4596801332
AXYL ECHO S CEI 4L 940 MB HF BK8497LED1.4596801330
AXYL ECHO S CEI 4L 940 MB HF GY8497LED1.4596801331
AXYL ECHO S CEI 4L 940 MB HF WH8497LED1.4596801329
AXYL ECHO S CEI 4L 940 MB RD ANT8497LED1.4596801368
AXYL ECHO S CEI 4L 940 MB RD BK8497LED1.4596801366
AXYL ECHO S CEI 4L 940 MB RD GY8497LED1.4596801367
AXYL ECHO S CEI 4L 940 MB RD WH8497LED1.4596801365

▼ Axyl Echo Cei, Small Size Narrow Beam

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
AXYL ECHO S CEI 4L 927 NB HF ANT8464LED1.4596801340
AXYL ECHO S CEI 4L 927 NB HF BK8464LED1.4596801338
AXYL ECHO S CEI 4L 927 NB HF GY8464LED1.4596801339
AXYL ECHO S CEI 4L 927 NB HF WH8464LED1.4596801337
AXYL ECHO S CEI 4L 927 NB RD ANT8464LED1.4596801376
AXYL ECHO S CEI 4L 927 NB RD BK8464LED1.4596801374
AXYL ECHO S CEI 4L 927 NB RD GY8464LED1.4596801375
AXYL ECHO S CEI 4L 927 NB RD WH8464LED1.4596801373
AXYL ECHO S CEI 4L 930 NB HF ANT8506LED1.4596801348
AXYL ECHO S CEI 4L 930 NB HF BK8506LED1.4596801346
AXYL ECHO S CEI 4L 930 NB HF GY8506LED1.4596801347
AXYL ECHO S CEI 4L 930 NB HF WH8506LED1.4596801345
AXYL ECHO S CEI 4L 930 NB RD ANT8506LED1.4596801384
AXYL ECHO S CEI 4L 930 NB RD BK8506LED1.4596801382
AXYL ECHO S CEI 4L 930 NB RD GY8506LED1.4596801383
AXYL ECHO S CEI 4L 930 NB RD WH8506LED1.4596801381
AXYL ECHO S CEI 4L 940 NB HF ANT8548LED1.4596801344
AXYL ECHO S CEI 4L 940 NB HF BK8548LED1.4596801342
AXYL ECHO S CEI 4L 940 NB HF GY8548LED1.4596801343
AXYL ECHO S CEI 4L 940 NB HF WH8548LED1.4596801341
AXYL ECHO S CEI 4L 940 NB RD ANT8548LED1.4596801380
AXYL ECHO S CEI 4L 940 NB RD BK8548LED1.4596801378
AXYL ECHO S CEI 4L 940 NB RD GY8548LED1.4596801379
AXYL ECHO S CEI 4L 940 NB RD WH8548LED1.4596801377

▼ Axyl Echo Cei, Small Size Wide Beam

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
AXYL ECHO S CEI 4L 927 WB HF ANT8347LED1.4596801352
AXYL ECHO S CEI 4L 927 WB HF BK8347LED1.4596801350
AXYL ECHO S CEI 4L 927 WB HF GY8347LED1.4596801351
AXYL ECHO S CEI 4L 927 WB HF WH8347LED1.4596801349
AXYL ECHO S CEI 4L 927 WB RD ANT8347LED1.4596801388
AXYL ECHO S CEI 4L 927 WB RD BK8347LED1.4596801386
AXYL ECHO S CEI 4L 927 WB RD GY8347LED1.4596801387
AXYL ECHO S CEI 4L 927 WB RD WH8347LED1.4596801385
AXYL ECHO S CEI 4L 930 WB HF ANT8378LED1.4596801360
AXYL ECHO S CEI 4L 930 WB HF BK8378LED1.4596801358
AXYL ECHO S CEI 4L 930 WB HF GY8378LED1.4596801359
AXYL ECHO S CEI 4L 930 WB HF WH8378LED1.4596801357
AXYL ECHO S CEI 4L 930 WB RD ANT8378LED1.4596801396
AXYL ECHO S CEI 4L 930 WB RD BK8378LED1.4596801394
AXYL ECHO S CEI 4L 930 WB RD GY8378LED1.4596801395
AXYL ECHO S CEI 4L 930 WB RD WH8378LED1.4596801393
AXYL ECHO S CEI 4L 940 WB HF ANT8409LED1.4596801356
AXYL ECHO S CEI 4L 940 WB HF BK8409LED1.4596801354
AXYL ECHO S CEI 4L 940 WB HF GY8409LED1.4596801355
AXYL ECHO S CEI 4L 940 WB HF WH8409LED1.4596801353
AXYL ECHO S CEI 4L 940 WB RD ANT8409LED1.4596801392
AXYL ECHO S CEI 4L 940 WB RD BK8409LED1.4596801390
AXYL ECHO S CEI 4L 940 WB RD GY8409LED1.4596801391
AXYL ECHO S CEI 4L 940 WB RD WH8409LED1.4596801389

▼ Axyl Echo Cei, Medium Size Medium Beam

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
AXYL ECHO M CEI 9L 927 MB HFX ANT211293LED3.3796801400
AXYL ECHO M CEI 9L 927 MB HFX BK211293LED3.3796801398
AXYL ECHO M CEI 9L 927 MB HFX GY211293LED3.3796801399
AXYL ECHO M CEI 9L 927 MB HFX WH211293LED3.3796801397
AXYL ECHO M CEI 9L 930 MB HFX ANT211411LED3.3796801408
AXYL ECHO M CEI 9L 930 MB HFX BK211411LED3.3796801406
AXYL ECHO M CEI 9L 930 MB HFX GY211411LED3.3796801407
AXYL ECHO M CEI 9L 930 MB HFX WH211411LED3.3796801405
AXYL ECHO M CEI 9L 940 MB HFX ANT211528LED3.3796801404
AXYL ECHO M CEI 9L 940 MB HFX BK211528LED3.3796801402
AXYL ECHO M CEI 9L 940 MB HFX GY211528LED3.3796801403
AXYL ECHO M CEI 9L 940 MB HFX WH211528LED3.3796801401

▼ Axyl Echo Cei, Medium Size Narrow Beam

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
AXYL ECHO M CEI 9L 927 NB HFX ANT211436LED3.3796801412
AXYL ECHO M CEI 9L 927 NB HFX BK211436LED3.3796801410
AXYL ECHO M CEI 9L 927 NB HFX GY211436LED3.3796801411
AXYL ECHO M CEI 9L 927 NB HFX WH211436LED3.3796801409
AXYL ECHO M CEI 9L 930 NB HFX ANT211567LED3.3796801420
AXYL ECHO M CEI 9L 930 NB HFX BK211567LED3.3796801418
AXYL ECHO M CEI 9L 930 NB HFX GY211567LED3.3796801419
AXYL ECHO M CEI 9L 930 NB HFX WH211567LED3.3796801417
AXYL ECHO M CEI 9L 940 NB HFX ANT211697LED3.3796801416
AXYL ECHO M CEI 9L 940 NB HFX BK211697LED3.3796801414
AXYL ECHO M CEI 9L 940 NB HFX GY211697LED3.3796801415
AXYL ECHO M CEI 9L 940 NB HFX WH211697LED3.3796801413

▼ Axyl Echo Cei, Medium Size Wide Beam

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
AXYL ECHO M CEI 9L 927 WB HFX ANT211068LED3.3796801424
AXYL ECHO M CEI 9L 927 WB HFX BK211068LED3.3796801422
AXYL ECHO M CEI 9L 927 WB HFX GY211068LED3.3796801423
AXYL ECHO M CEI 9L 927 WB HFX WH211068LED3.3796801421
AXYL ECHO M CEI 9L 930 WB HFX ANT211165LED3.3796801432
AXYL ECHO M CEI 9L 930 WB HFX BK211165LED3.3796801430
AXYL ECHO M CEI 9L 930 WB HFX GY211165LED3.3796801431
AXYL ECHO M CEI 9L 930 WB HFX WH211165LED3.3796801429
AXYL ECHO M CEI 9L 940 WB HFX ANT211262LED3.3796801428
AXYL ECHO M CEI 9L 940 WB HFX BK211262LED3.3796801426
AXYL ECHO M CEI 9L 940 WB HFX GY211262LED3.3796801427
AXYL ECHO M CEI 9L 940 WB HFX WH211262LED3.3796801425
