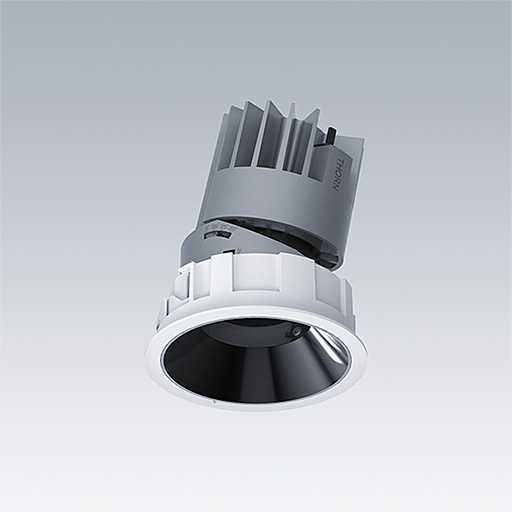

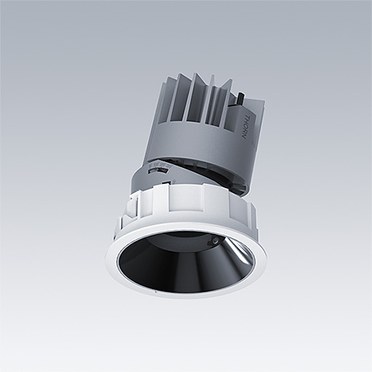

Corsa PRO
Ultra-flexible and reliable downlights offer pleasant user experience for retail and hospitality application
- Wide range of lumen output from 540lm to 4700lm covers most applications
- Diverse optics options for all the items of the range
- Easy and reliable installation via the installing brackets, securely fit to ceilings of different thickness
- For Φ100/Φ125/Φ150 version, angle adjusted by screwdriver, convenient and reliable for installation at site
- On/Off, 0-10V dimming and DALI dimming versions available
- Cut-off angle > 30°
Materials and Finish
Housing: die-cast aluminum
Lens: polycarbonate
Reflector: polycarbonate, chrome black
Specification
To specify state:
Ultra-flexible and reliable downlights offer pleasant user experience for retail and hospitality application. Cut-off angle > 30°. 5 sizes available, cutout: Φ55mm, Φ75mm, Φ100mm, Φ125mm and Φ150mm. Total luminous flux: from 480lm to 4500lm, luminaire input wattage: from 7W to 46W, CCT 4000K. Long 50,000hrs lifetime. CRI > 90, SDCM 3. Class II electrical, IP20/54. Suitable for recessed mount.
As Thorn Corsa PRO
- New Product
New Product
LumExpress Product
eControl Product
▼ Corsa PRO, 0-10V
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| CORSA PRO 100 1400-940 MD HFA | LED | 1.50 | 22682212 | ||||||
| CORSA PRO 100 2200-940 MD HFA | LED | 1.80 | 22682213 | ||||||
| CORSA PRO 125 2000-940 MD HFA | LED | 2.50 | 22682214 | ||||||
| CORSA PRO 125 2700-940 MD HFA | LED | 2.50 | 22682215 | ||||||
| CORSA PRO 125 3000-940 MD HFA | LED | 2.50 | 22682216 | ||||||
| CORSA PRO 150 3000-940 MD HFA | LED | 3.00 | 22682217 | ||||||
| CORSA PRO 150 4100-940 MD HFA | LED | 3.00 | 22682218 | ||||||
| CORSA PRO 150 4500-940 MD HFA | LED | 3.00 | 22682219 | ||||||
| CORSA PRO 55 480-940 MD HFA | LED | 0.50 | 22682207 | ||||||
| CORSA PRO 55 620-940 MD HFA | LED | 0.50 | 22682208 | ||||||
| CORSA PRO 75 1000-940 MD HFA | LED | 0.80 | 22682210 | ||||||
| CORSA PRO 75 1100-940 MD HFA | LED | 0.80 | 22682211 | ||||||
| CORSA PRO 75 700-940 MD HFA | LED | 0.80 | 22682209 |
▼ Corsa PRO, DALI
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| CORSA PRO 100 1400-940 MD HFX | LED | 1.50 | 22682225 | ||||||
| CORSA PRO 100 2200-940 MD HFX | LED | 1.80 | 22682226 | ||||||
| CORSA PRO 125 2000-940 MD HFX | LED | 2.50 | 22682227 | ||||||
| CORSA PRO 125 2700-940 MD HFX | LED | 2.50 | 22682228 | ||||||
| CORSA PRO 125 3000-940 MD HFX | LED | 2.50 | 22682229 | ||||||
| CORSA PRO 150 3000-940 MD HFX | LED | 3.00 | 22682230 | ||||||
| CORSA PRO 150 4100-940 MD HFX | LED | 3.00 | 22682231 | ||||||
| CORSA PRO 150 4500-940 MD HFX | LED | 3.00 | 22682232 | ||||||
| CORSA PRO 55 480-940 MD HFX | LED | 0.50 | 22682220 | ||||||
| CORSA PRO 55 620-940 MD HFX | LED | 0.50 | 22682221 | ||||||
| CORSA PRO 75 1000-940 MD HFX | LED | 0.80 | 22682223 | ||||||
| CORSA PRO 75 1100-940 MD HFX | LED | 0.80 | 22682224 | ||||||
| CORSA PRO 75 700-940 MD HFX | LED | 0.80 | 22682222 |
