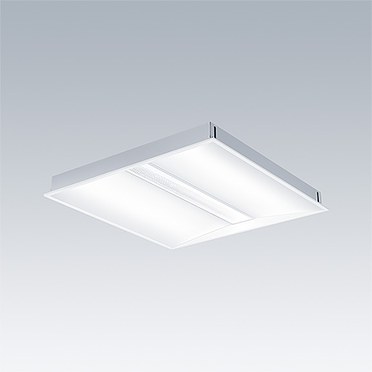

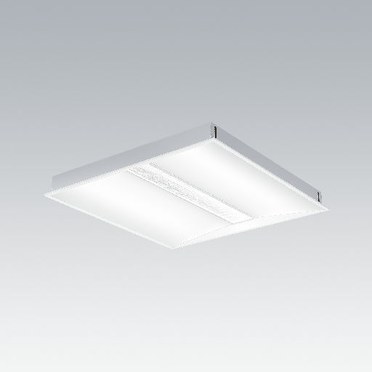

IQ Beam
Brightly balanced recessed ceilling light
- Design: It’s clear linear design and distinct light make IQ Beam is a real looker. And with its integrated features and clean exterior, it appears both classic and, at the same time, innovative.
- Optic: With up to 140 lm/W, UGR<19 and CRI>90 the MPT version is a performance luminaire for office and education applications. The MPT-F version features an additional micro diffusor foil for better comfort; ideal for corridors and other gathering areas.
- Installation: Combining intelligent design features with microprism optics lead to a brilliant enhancement for wide-ranging refurbishment projects and cuts an excellent figure in virtually any setting from offices to far-reaching secondary spaces.
Materials and Finish
Diffuser: polycarbonate
Body: highly reflective white steel coffer
Installation and Mounting
Suitable for lay in, as well as for pull up, into concealed grid and plasterboard ceilings with our optional wedge accessory kits suitable.
Specification
To specify state:
A linear optic recessed LED luminaire for exposed T, plasterboard and concealed grid systems. Available with 2 optics (prismatic / MPT), 3000K or 4000K colour temperature, CRI>90 and UGR<19 and a lifetime of 50 000 hours @ L90 Ta 25°C including high efficiency option with up to 140 Llm/W. DALI and sensor options combinable with emergency lighting functionality.
As Thorn IQ Beam
- New Product
New Product
LumExpress Product
eControl Product
▼ IQ Beam
▼ IQ Beam, emergency
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| IQ BEAM 3000-830 MPT HF E3 Q600 | LED | 4.40 | 92928079 | ||||||
| IQ BEAM 3000-840 MC HF E3 Q600 | LED | 4.40 | 96635436 | ||||||
| IQ BEAM 3000-840 MPT HF E3 Q600 | LED | 4.44 | 92927325 | ||||||
| IQ BEAM 3000-840 MPT HF E3D Q600 | LED | 4.44 | 92927328 | ||||||
| IQ BEAM 3000-840 MPT-F HF E3 Q600 | LED | 4.46 | 92927331 | ||||||
| IQ BEAM 3000-840 MPT-F HF E3D Q600 | LED | 4.50 | 92927333 | ||||||
| IQ BEAM 3000-940 OPC HF E3D Q600 | LED | 4.40 | 96635442 | ||||||
| IQ BEAM 3800-830 MPT HF E3 Q600 | LED | 4.40 | 92930332 | ||||||
| IQ BEAM 3800-840 MPT HF E3 Q600 | LED | 4.44 | 92927336 | ||||||
| IQ BEAM 3800-840 MPT HF E3D Q600 | LED | 4.44 | 92927355 | ||||||
| IQ BEAM 3800-840 MPT-F HF E3 Q600 | LED | 4.46 | 92927358 | ||||||
| IQ BEAM 3800-840 MPT-F HF E3D Q600 | LED | 4.50 | 92927360 | ||||||
| IQ BEAM 4300-840 MC HF E3D Q600 | LED | 4.50 | 96635437 | ||||||
| IQ BEAM 4300-840 MPT HF E3 Q600 | LED | 4.52 | 92927342 | ||||||
| IQ BEAM 4300-840 MPT HF E3D Q600 | LED | 4.50 | 92927345 | ||||||
| IQ BEAM 4300-840 MPT-F HF E3 Q600 | LED | 4.54 | 92927348 | ||||||
| IQ BEAM 4300-840 MPT-F HF E3D Q600 | LED | 4.50 | 92927350 |
▼ IQ Beam, dimmable
▼ IQ Beam, dimmable, emergency
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| IQ BEAM 3000-830 MPT HFIX E3 Q600 | LED | 4.48 | 92929360 | ||||||
| IQ BEAM 3000-840 MPT HFIX E3 Q600 | LED | 4.48 | 92927327 | ||||||
| IQ BEAM 3000-840 MPT HFIX E3D Q600 | LED | 4.50 | 92927329 | ||||||
| IQ BEAM 3000-840 MPT-F HFIX E3 Q600 | LED | 4.50 | 92927332 | ||||||
| IQ BEAM 3000-840 MPT-F HFIX E3D Q600 | LED | 4.50 | 92927334 | ||||||
| IQ BEAM 3000-940 OPC HFIX E3D Q600 | LED | 4.48 | 96635444 | ||||||
| IQ BEAM 3800-830 MPT HFIX E3 Q600 | LED | 4.48 | 92928732 | ||||||
| IQ BEAM 3800-840 MPT HFIX E3 Q600 | LED | 4.48 | 92927337 | ||||||
| IQ BEAM 3800-840 MPT HFIX E3D Q600 | LED | 4.48 | 92927356 | ||||||
| IQ BEAM 3800-840 MPT-F HFIX E3 Q600 | LED | 4.50 | 92927359 | ||||||
| IQ BEAM 3800-840 MPT-F HFIX E3D Q600 | LED | 4.50 | 92927361 | ||||||
| IQ BEAM 4300-840 MPT HFIX E3 Q600 | LED | 4.56 | 92927344 | ||||||
| IQ BEAM 4300-840 MPT HFIX E3D Q600 | LED | 4.60 | 92927346 | ||||||
| IQ BEAM 4300-840 MPT-F HFIX E3 Q600 | LED | 4.58 | 92927349 | ||||||
| IQ BEAM 4300-840 MPT-F HFIX E3D Q600 | LED | 4.60 | 92927351 | ||||||
| IQ BEAM 4300-840 OPC HFIX E3D Q600 | LED | 4.60 | 96635440 |
▼ IQ Beam, sensor
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| IQ BEAM 3000-840 MPT HFSX Q600 | LED | 4.20 | 92927685 | ||||||
| IQ BEAM 3000-840 MPT SENS Q600 | LED | 4.20 | 92927382 | ||||||
| IQ BEAM 3000-840 MPT-F HFSX Q600 | LED | 4.20 | 92927686 | ||||||
| IQ BEAM 3000-840 MPT-F SENS Q600 | LED | 4.20 | 92927385 | ||||||
| IQ BEAM 3800-840 MPT HFSX Q600 | LED | 4.20 | 92926488 | ||||||
| IQ BEAM 3800-840 MPT SENS Q600 | LED | 4.20 | 92927383 | ||||||
| IQ BEAM 3800-840 MPT-F HFSX Q600 | LED | 4.20 | 92927687 | ||||||
| IQ BEAM 3800-840 MPT-F SENS Q600 | LED | 4.20 | 92927386 | ||||||
| IQ BEAM 4300-840 MPT HFSX Q600 | LED | 4.30 | 92927689 | ||||||
| IQ BEAM 4300-840 MPT SENS Q600 | LED | 4.30 | 92927384 | ||||||
| IQ BEAM 4300-840 MPT-F HFSX Q600 | LED | 4.30 | 92927688 | ||||||
| IQ BEAM 4300-840 MPT-F SENS Q600 | LED | 4.30 | 92927387 |
▼ IQ Beam, sensor, emergency
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| IQ BEAM 3000-840 MPT SENS E3 Q600 | LED | 4.50 | 92927635 | ||||||
| IQ BEAM 3000-840 MPT-F SENS E3 Q600 | LED | 4.60 | 92926487 | ||||||
| IQ BEAM 3800-840 MPT SENS E3 Q600 | LED | 4.50 | 92927637 | ||||||
| IQ BEAM 3800-840 MPT-F SENS E3 Q600 | LED | 4.60 | 92927636 | ||||||
| IQ BEAM 4300-840 MPT SENS E3 Q600 | LED | 4.60 | 92927638 | ||||||
| IQ BEAM 4300-840 MPT-F SENS E3 Q600 | LED | 4.60 | 92927639 |
▼ IQ Beam, high temperature
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| IQ BEAM HT 6300-840 MPT-F HF Q600 | LED | 4.22 | 96636076 | ||||||
| IQ BEAM HT 6300-840 MPT-F HFIX Q600 | LED | 4.26 | 96636077 | ||||||
| IQ BEAM HT 6300-840 MPT-F PIR Q600 | LED | 4.32 | 96636079 | ||||||
| IQ BEAM HT 6300-840 MPT-F PIR SS Q600 | LED | 4.32 | 96636078 |
▼ IQ Beam accessories
| Description | Wt (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| basicDIM ILD PROGRAMMER | 0.03 | 28000257 | |||||||
| BETA 3 IQ BEAM SURFACE MOUNT KIT Q600 | 1.90 | 96635031 | |||||||
| BETA 3 IQ BEAM SURFACE MOUNT KIT Q625 | 2.00 | 96635033 | |||||||
| IQ BEAM EXTERNAL FIT WEDGE 1-SET | 0.22 | 96634438 | |||||||
| IQ BEAM INTERNAL FIT WEDGE 1-SET | 0.22 | 96634439 | |||||||
| REMOTECONTROL IR6 | 0.02 | 28000647 |
