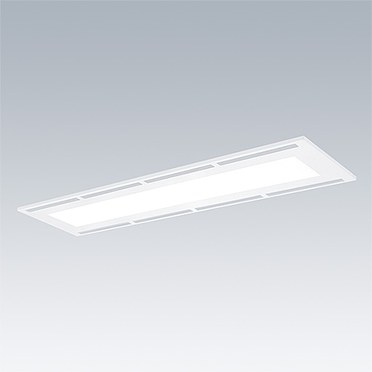

Royal Modular
Flexible with style: slim profile with remote driver
- Flexible and ready to adapt, supplied with all components including Flex and Plug, a perfect solution for your refurbishment
- Life: L80 70,000hrs at 25°C (L70 >60,000hrs at 50°C meeting Public School specification)
- Suitable for UGR19 requirements
- Supplied with Tridonic driver fixed output or DALI dimming
- Emergency Lighting (E2) version, Sensor (HFS) version, Bluetooth (BC) wireless version and Air Handling (AH) version available upon request for specific project
- Custom sizes and specific accessories available upon request for specialised project
- LED light source and LED driver easily replaceable for maintenance
Materials and Finish
Body: white painted steel with LED source within a white painted aluminium frame.
Diffuser: micro-prismatic diffuser.
Installation and Mounting
Suitable for recessed mounting in T-bar. Pre-wired 1.5m flex & plug.
Specification
To specify state:
Recessed, Surface mounted modular luminaire with high performance design and total system efficiency above 115lm/W. UGR19*. Tridonic driver.
As Thorn Royal Modular.
New Product
LumExpress Product
eControl Product
▼ Royal Modular
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| ROYAL MOD LED1500-940 6X3 AH FP | LED | 0.00 | 96650522 | ||||||
| ROYAL MOD LED1500-940 6X3 AH HFI FP | LED | 2.10 | 96650244 | ||||||
| ROYAL MOD LED1500-940 6X3 FP | LED | 0.00 | 96650519 | ||||||
| ROYAL MOD LED1500-940 6X3 HFI FP | LED | 2.30 | 96649664 | ||||||
| ROYAL MOD LED2700-940 12X3 AH FP | LED | 0.00 | 96650523 | ||||||
| ROYAL MOD LED2700-940 12X3 AH HFI FP | LED | 3.90 | 96650248 | ||||||
| ROYAL MOD LED2700-940 12X3 FP | LED | 0.00 | 96650520 | ||||||
| ROYAL MOD LED2700-940 12X3 HFI FP | LED | 4.30 | 96649668 | ||||||
| ROYAL MOD LED3500-940 12X3 AH FP | LED | 0.00 | 96650524 | ||||||
| ROYAL MOD LED3500-940 12X3 AH HFI FP | LED | 3.90 | 96650252 | ||||||
| ROYAL MOD LED3500-940 12X3 FP | LED | 0.00 | 96650521 | ||||||
| ROYAL MOD LED3500-940 12X3 HFI FP | LED | 4.30 | 96649672 |
▼ Royal LED Accessories
| Description | Wt (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| PPF 1200x300 | 0.00 | 96648974 | |||||||
| PPF 1200x600 | 0.00 | 96648975 | |||||||
| PPF 600x300 | 0.00 | 96648976 | |||||||
| PPF 600x600 | 0.00 | 96648977 | |||||||
| ROYAL LED SURFACE MOUNTING KIT 12x3 | 0.50 | 96540976 | |||||||
| ROYAL LED SURFACE MOUNTING KIT 12X6 | 0.00 | 96648854 | |||||||
| ROYAL LED SURFACE MOUNTING KIT 6x3 | 0.00 | 96647072 | |||||||
| ROYAL LED SURFACE MOUNTING KIT 6x6 | 0.50 | 96540977 | |||||||
| ROYAL LED WIRE SUSPENSION KIT (1.5M) | 0.10 | 96541122 |
