  • Recuvo C — RECUVO C 3000-940 HF MPT 6x3 FP

Recuvo C / RECUVO C 3000-940 HF MPT 6x3 FP

96652687

▼ Data Sheet

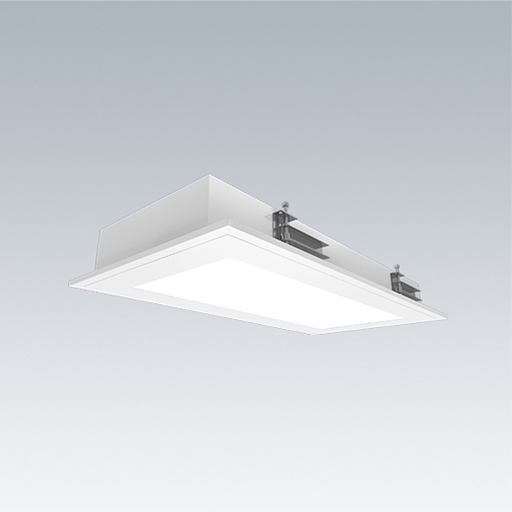

Normal purity ceiling recessed LED luminaire. Bottom access. Electronic, Fixed output control gear. Class I electrical. IP44 Impact strength: IK08. Body: welded steel, white painted. Cover: PC for chemical resistance in clean rooms. Slot-in frame design. Operating ambient temperature: -20°C to +40°C. Glare controlled by a micro-prismatic optic, UGR<19. Compliant with Cyanosis observation lighting requirements COI<3.3. Colour Rendering Index min.: 90. Suitable for use in clean rooms. Complete with 4000K LED and 3-core Flex&Plug. A suction cup is needed to access the luminaire and has to be ordered separately (art. 20935455).

Dimensions: 630 x 324 x 80 mm, cutout: 602x296mm
Luminaire input power: 30.1 W
Luminaire luminous flux: 3119 lm
Luminaire efficacy: 104 lm/W
Weight: 5.5 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:3119 lm
  • Luminaire efficacy*:104 lm/W
  • Colour Rendering Index min.:90
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L80 50000 h at 25 °C
  • Ballast:1x HF_
  • Luminaire input power*:30.1 W Power factor = 0.97
  • Dimming:FIX
  • LED
  • IK08
  • IP44
  • RCM
  • SC1 - Protection Class 1
  • Ta = -20 to +40

▼ Photometry

Photometric configuration

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

Step 1: Technical data
(lm)
(m)
(m)
(%)
Step 2: Room Data
(m)
(m)
(m)
(m)
(%)
Step 3: Result
(lx)
(%)
